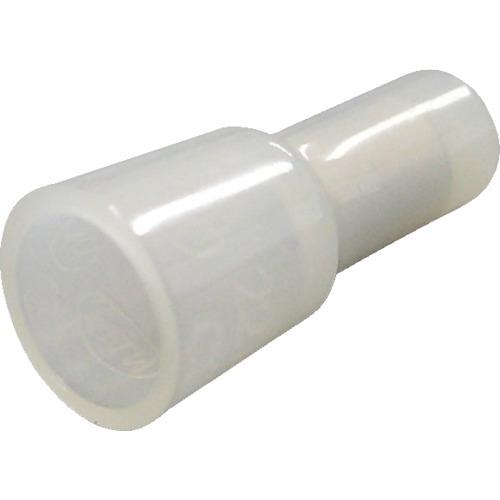

Nichifu closed end connector CE type with insulation coating (100 pieces included)

[Features] ● One side of the insulating coating is closed. ●This product complies with the RoHS Directive.

[Applications] ● For wiring in equipment by overlapping multiple wires.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 0.5 to 1.75 ● Total length (mm): 18.0 ● R (mm): 6.2 ● E (mm): 8.8 ● Inner diameter (mm): 6.5 ● Rated Current (A): 7 ●Applicable tool: Closed end connector tool ●Wire coupling range AWG: 22-16

[Specification 2] ● JIS C2807 standard product ● Rated voltage: 300 V ● Color: milky white

[Material/Finish] Connector: Oxygen-free copper (C1020)/Electric tin plating Insulator: Nylon

[Set contents/accessories]
-

【Note】
-
