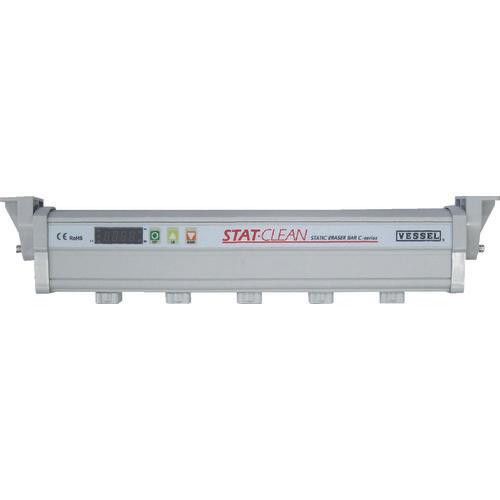

[Features] ● In addition to the ultra-compact design, more stable static elimination has been achieved. ●Equipped with a high voltage alarm. ●External signal output is possible. ●Power supply terminals and signal terminals are consolidated on one side for easy wiring. ●Short type, ideal for installation on conveyors or inside equipment. ●Output voltage and ion balance can be adjusted. ● Newly designed nozzle with improved static elimination performance while reducing air consumption.
[Applications] ●For clean ceilings, glass for painting processes of automobile parts, substrate transport, etc. ●For static destruction, static electricity prevention, and dust adhesion prevention for electronic components, electronic assembly, resin molding, packaging containers, etc. ●For static electricity destruction, static electricity prevention, and dust adhesion prevention for electronic components, electronic assembly, resin molding, packaging containers, etc.

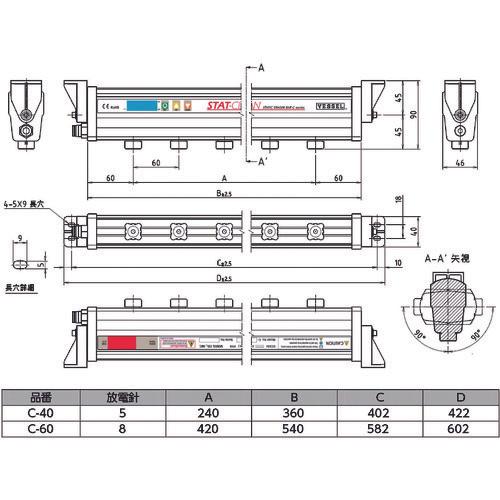

[Specifications] - Power supply (V): DC24 ±5% [Connector RJ45] - Current consumption (mA): max600 - Power consumption (W): 7.8W max. - Working air pressure (MPa): 0.3 - Width (mm) : 602 ● Depth (mm): 46 ● Height (mm): 90 ● Output voltage (kV): 7.8 W max ● Input power supply (V): 24 VDC ±5% [Connector RJ45] ● Ion generation method: Pulse AC CORONA discharge type
[Specifications 2] ● Static elimination method: Pulse AC CORONA discharge type ● Ion balance: ±30 V (distance 1000 mm) ● Ambient operating temperature: 0 to 50°C ● Ambient operating humidity: 35 to 85% RH (no condensation or freezing) ●Usage distance: about 50 to 2000mm ●Amount of ozone generated: 0.05ppm or less ●RoHS, CE compliant
