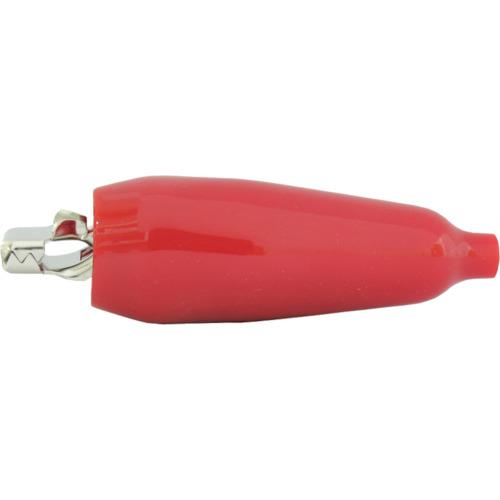

SATO PARTS clip C-3 series 30A clip and cap set red

[Features]● Attached to the tip of the cable and used to make lead wires.

[Use] ●Testing temporary wiring, models, teaching materials, etc. ● Continuity check, etc.

[Specifications] ● Color: Red ● Rated (A): 30 ● Overall length (mm): 69 ● Maximum opening dimension (mm): 13.0 ● Body diameter (mm): 27 ● Hole size (mm): 6 ● Insulation resistance: DC500V, 100MΩ or more ●Rated voltage (V): 30 ●Cap diameter (mm): 27.0 ●Rated current (A): 30 ●Clip total length (mm): 68.0 ●Wire insertion hole (mm): 6.0 ●Cover diameter (mm) ): 27.0 ● Cover length (mm): 69.0 ● Cover hole dimensions (mm): 6.0

[Specification 2] Withstand voltage: AC1000V (1 minute)

[Material/Finish] ●Cap: Vinyl chloride (PVC) ●Clip body: Brass

[Set contents/accessories]
-

【Note】
-
