[Features] ● In addition to the ultra-compact design, high-precision, ultra-Kosoku static elimination has been achieved. ● Equipped with an "auto balance mode" that automatically adjusts to the optimum ion balance according to the charged object. Suitable for any application. ●Equipped with needle cleaning timer and high pressure alarm. ● Comes with a card-type remote controller.

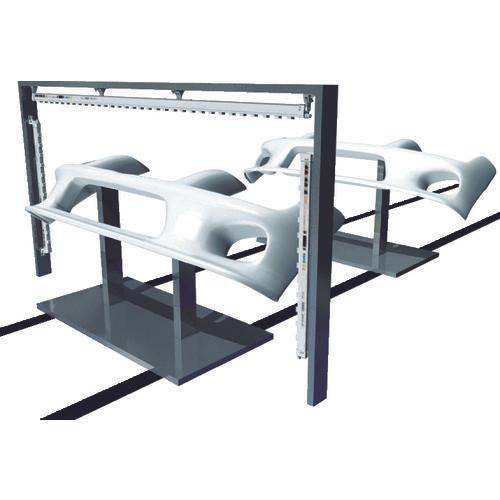

[Applications] ●For clean ceilings, glass for painting processes of automobile parts, substrate transport, etc. ●Ceiling clean, painting process glass for automobile parts, substrate transportation, etc.

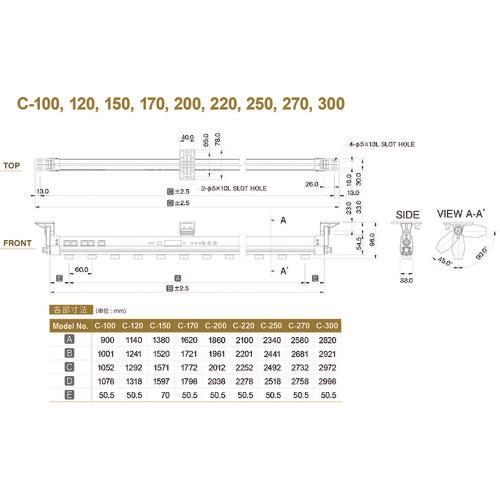

[Specifications] Power supply (V): DC24 ±5% [Connector RJ45] Current consumption (mA): max600 Power consumption (W): 7.8W max. Air pressure (MPa): 0.3 Width (mm) : 1078 ● Depth (mm): 33 ● Height (mm): 96.0 ● Output voltage (kV): 7.8W max
[Specification 2] - Static elimination method: Pulse AC CORONA discharge type - Ion balance: ±30 V (distance 1000 mm) - Ambient operating temperature: 0 to 50°C - Ambient operating humidity: 35 to 85% RH (no condensation or freezing) ●Usage distance: about 50 to 2000mm ●Ozone generation amount: 0.05ppm or less ●Input power supply: DC24V ±5% [Connector RJ45] ●Current consumption: max 14.4W ●Air connection: PT 1/8 Hose outer diameter 8mmΦ x inner diameter 6mmΦ
