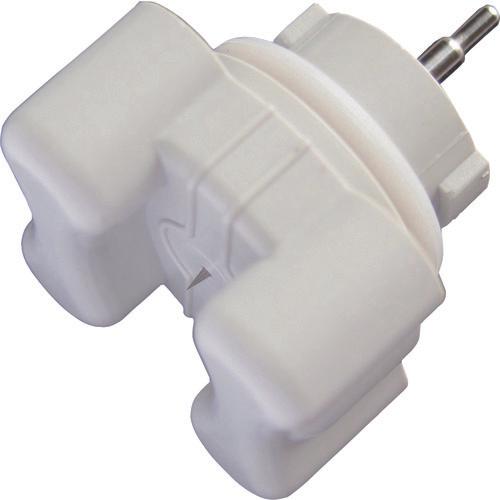

VESSEL needle electrode UNIT Applicable model: C-bar series C-00HR8

[Features] ● Needle electrode UNIT.

[Use] ● For C-bar series.

[Specifications] ● Power supply (V): DC24 ±5% [Connector RJ45] ● Current consumption (mA): MAX 600 ● Power consumption (W): MAX 7.8 ● Working air pressure (MPa): 0.3

[Specifications 2] ● Static elimination method: Pulse AC CORONA discharge type ● Ion balance: ±30 V (distance 1000 mm) ● Ambient operating temperature: 0 to 50°C ● Ambient operating humidity: 35 to 85% RH (no condensation or freezing) ●Usage distance: about 50 to 2000mm ●Ozone generation amount: 0.05ppm or less

[Material/Finish]
-

[Set contents/accessories]
-

【Note】
-
