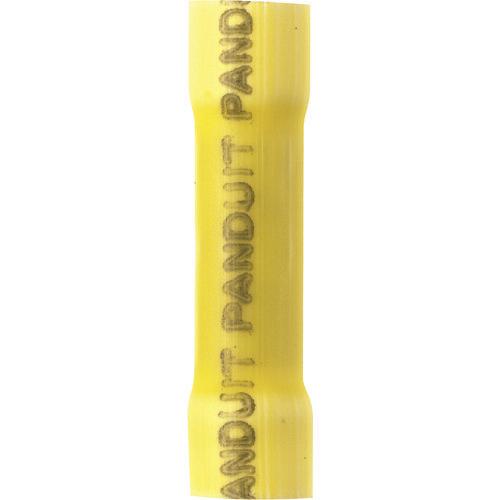

PANDUIT crimp terminal, butt type with full vinyl covering (25 pieces)

[Features]● Since it is completely insulated with vinyl, there is no need to attach an insulation cover such as a sleeve. ●There is a wire stopper inside the terminal, so the wire can be inserted to the proper position. ●The wire insertion part is wide enough to handle wires with thick coating.

[Applications] ●Mating copper wires.

[Specifications] ● Wire binding range Stranded wire ([[MM2]]): 6.6 mm ● Wire binding range AWG: 12-10 ● Color: yellow ● Total length (mm): 29.7 ● Wire binding range AWG: 12 to 10 ● Maximum Insulation outer diameter (mm): 6.6 Wire connection range AWG: 12 to 10

[Specification 2] ● Applicable wire size: 12 to 10 AWG ● Maximum operating temperature: 105°C (indoor) ● Rated voltage: 600 V

[Material/Finish] ●Copper (tin plating) ●Vinyl

[Set contents/accessories]
-

【Note】
-
