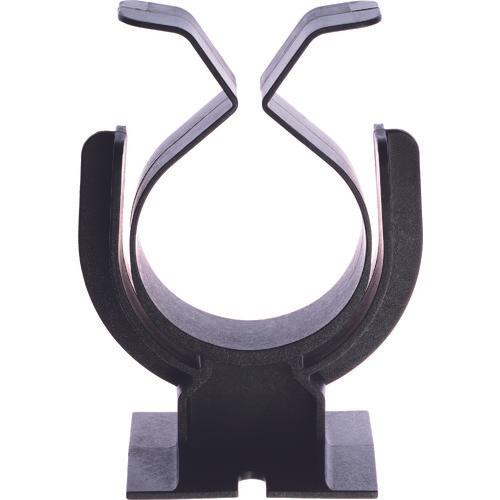

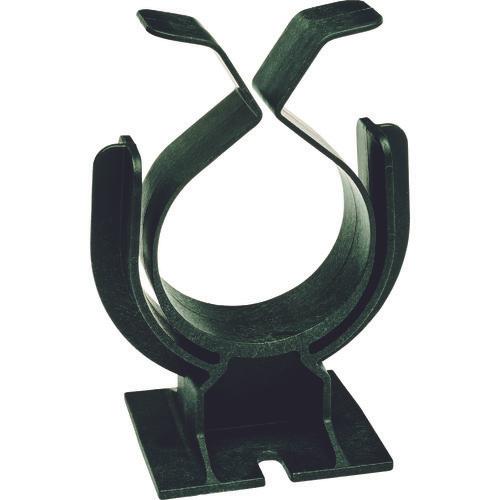

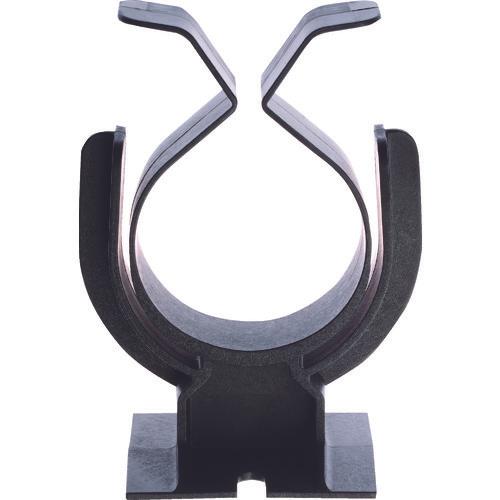

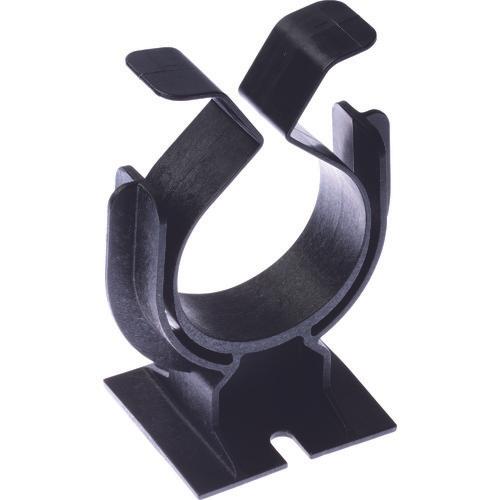

[Features] ●The insertion port is wide and elastic, so wiring is easy and the harness can be easily removed. ●The ends of the cables are bent and butted together so that the cables do not come off. ● After the harness is completed, it can be easily removed.

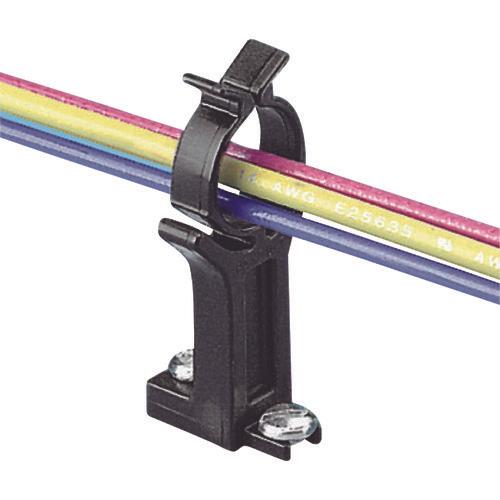

[Applications] ● For holding cables in harness assembly.
[Specifications] ● Color: Black ● Length (mm): 57.2 ● Width (mm): 63.5 ● Height (mm): 33.5 ● Maximum binding diameter (mm): 50.8 ● Fixing method: M6 screw ● Suitable fixing platform: QB -BASE175-Q Applicable screw: QB-S25-500-C A (mm): 33.5 B (mm): 57.2 C (mm): 63.5 D (mm): 53.8
[Specification 2] ●For indoor use ●Operating temperature range: -60 to 85℃
