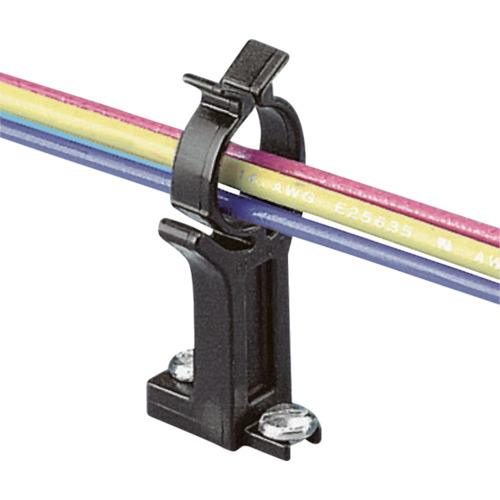

PANDUIT Harness Board Accessory Bundle INA (100pcs)

[Features]●Funnel-shaped insertion port for quick cable insertion. ●The ends of the cables are bent and butted together so that the cables do not come off. ● After the harness is completed, it can be easily removed.

[Applications] ● For holding cables in harness assembly.

[Specifications] ● Color: Black ● Length (mm): 11.2 ● Width (mm): 19.8 ● Height (mm): 24.1 ● Maximum binding diameter (mm): 19.1 ● Fixing method: M3 screw ● Suitable fixing platform: QB -BASE175-Q Applicable screw: QB-S6-500-C A (mm): 24.1 B (mm): 11.2 C (mm): 19.8 D (mm): 19.3

[Specification 2] ●For indoor use ●Operating temperature range: -40 to 85℃

[Material/Finish] ● Nylon 66

[Set contents/accessories]
-

【Note】
-
