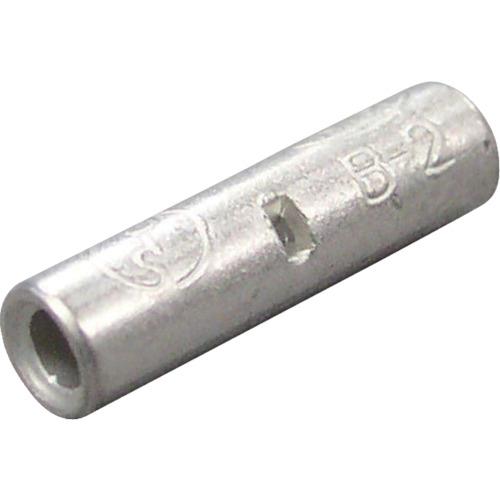

Nichifu bare crimp sleeve B type (100P)

[Features] ● Wires are butted and connected within the sleeve.

[Applications] ● For connecting mild steel stranded wires or single wires.

[Specifications] ● Wire binding range Stranded wire ([[MM2]]): 1.04 to 2.63 ● Overall length (mm): 15.0 ● Inner dimension (mm): 2.3 ● JIS standard product: ○ Applicable tools: Bare crimp terminal/sleeve ● Wire connection range Single wire mm: 1.14 to 1.82 ● Wire connection range AWG: 16-14

[Specification 2] ●B type ●Compliant with ROHS directive ●Manufactured in an ISO9001 certified factory

[Material/Finish] Oxygen-free copper (C1020)/Electrotin plating

[Set contents/accessories]
-

[Caution] ●Copper wire only. ●Please use within the wire connection range. ●Please use the applicable crimping tool specified by IS standard or our company.
