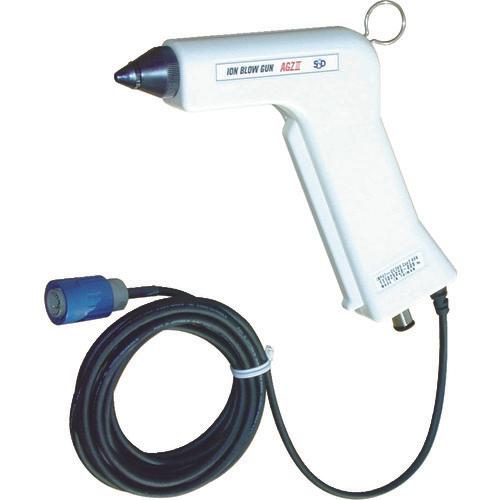

Shishido static eliminator

[Features] ● An air gun type ionizer with a built-in static elimination electrode that neutralizes and removes the charge of a charged body and blows away dust adhering to static electricity with air. ●Compact and lightweight, it fits comfortably in your hand. ● Since the air gun has a built-in piezoelectric transformer, the high voltage part is not exposed to the outside, and it is a safe design with no high voltage cables. ●Energy-saving, low-voltage, and generates CORONA discharge. ●The plastic gun fits comfortably in your hand and is lightweight at 200g, improving work efficiency.

[Use] ● ESD countermeasures in the electronics industry. ●Resin molded products and other static electricity countermeasure products for all industries. ●Prevents contamination by removing dust adhering to charged objects due to static electricity in the plastic and film industries.

[Specifications] ● Power supply (V): DC24 ● Working air pressure (MPa): 0.05 to 0.6 ● Width (mm): 165 ● Depth (mm): 25 ● Height (mm): 136 ● Ambient operating humidity (%) : 65% or less Ion generation method: High frequency AC CORONA discharge type

[Specification 2] ● Static elimination method: High-frequency AC CORONA discharge type ● Air consumption flow rate: 370 L/min (0.6 MPa) ● Amount of ozone generated: 0.04 ppm or less (distance 200 mm) ● Ambient operating temperature: 0 to 40°C ● Ambient operating humidity : 65% RH or less (no condensation or freezing) Ion balance: ±10 V (distance 100 mm)

[Material/Finish] ●PBT ●Body 4: PBT ●Nozzle: PPS

[Set Contents/Accessories] AC adapter

[Caution] ●This product is non-explosion proof. Do not install or use in places or atmospheres where combustible gases or solvents are handled. There is a risk of ignition and explosion. ● Since a high voltage is applied to the discharge needle, keep fingers, body, wires, tools, and other conductive objects away from it. Doing so may cause an electric shock or malfunction. ●The tip of the discharge needle is sharp, so be careful when handling it. Doing so may result in bodily injury. ●Others Please check the instruction manual.
