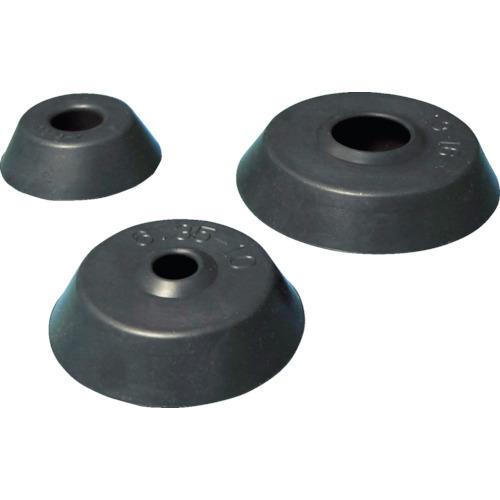

ARAM bushing EPDM (7044-02)

[Features] ● Has excellent waterproof and dustproof properties. ●It has a heat insulating effect because the inside is hollow. (Excluding ABU-01S and ABU-01E) ●Easy installation just by pushing, improving work efficiency. ●Cables and rigid pipes have a circular cross-section and a bushing effect only if they are of a specified size.

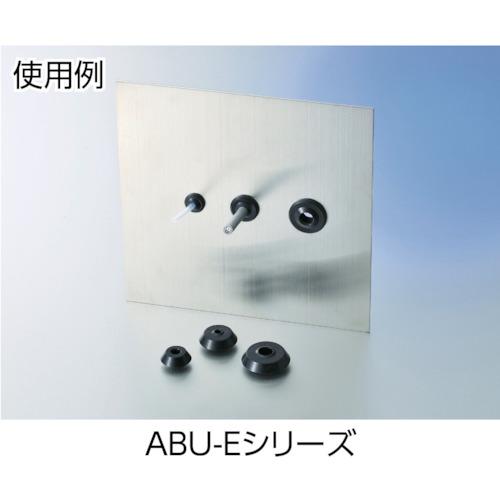

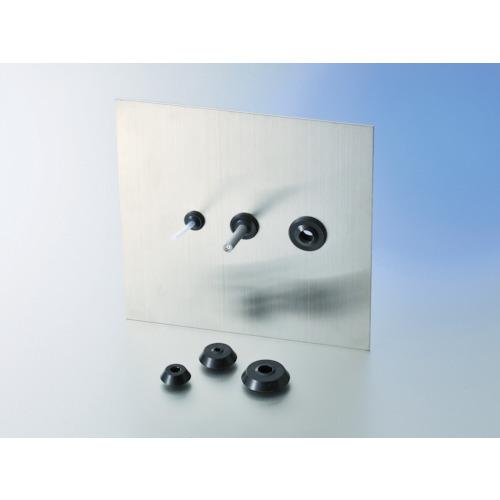

[Use] ● Protective material for cables and wiring.

[Specifications] ● Applicable cable diameter (mm): 13 to 16 ● Color: gray ● Partition hole diameter (mm): 27 ● Height (mm): 13 ● Applicable partition thickness (mm): 1.5 to 3 ● Outer diameter dimensions (mm): 37.5

[Specification 2] IP test result - protection class IPX5 (test method: JIS standard C0920: 2003) IP test result - protection class IPX6 (test method: JIS standard C0920: 2003)

[Material/Finish] EPDM

[Set contents/accessories]
-

【Note】
-
