[Features]●Bundles can be efficiently fixed using binding bands. -Since it comes with adhesive tape, it can be easily attached from the mount. ●Five sizes are available depending on the thickness and weight of the wire to be fixed. ● It is also possible to screw. (Excluding ABM20) Operating temperature range: -29°C to 49°C

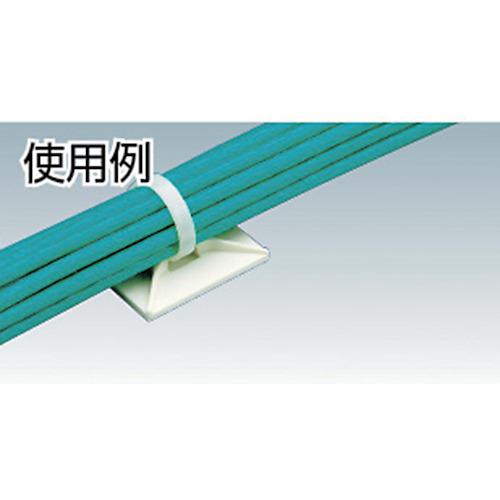

[Applications] ● Wiring and fixing electric wires in control panels and switchboards.

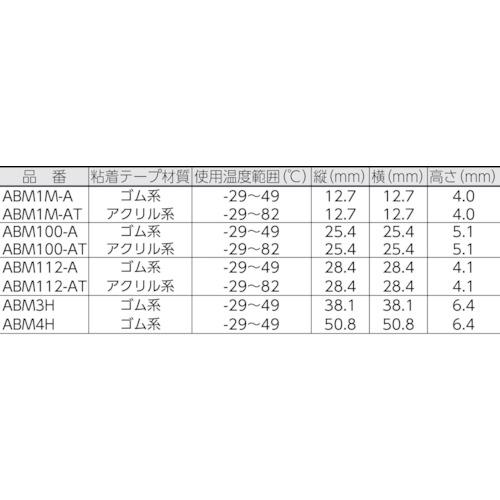

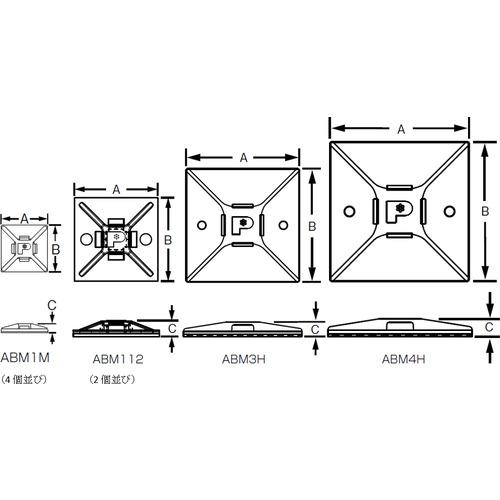

[Specifications] ● Color: White ● Length (mm): 50.8 ● Width (mm): 50.8 ● Height (mm): 6.4 ● Width of binding band used (mm): 2.3 to 8.9 ● Screw hole diameter (mm): 3 .9
[Specification 2] ● UL flame retardant (94V-2) ● Indoor use ● RoHS compliant ● Maximum static load (g): 59
[Material/Finish] ● Nylon 66
[Set contents/accessories] -
[Caution] ●Remove oil and dust from the mounting surface before use.
