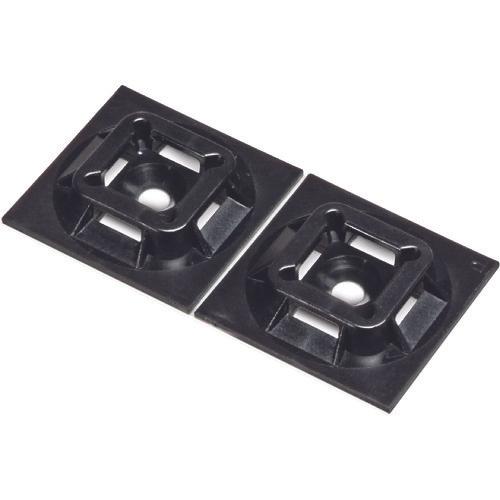

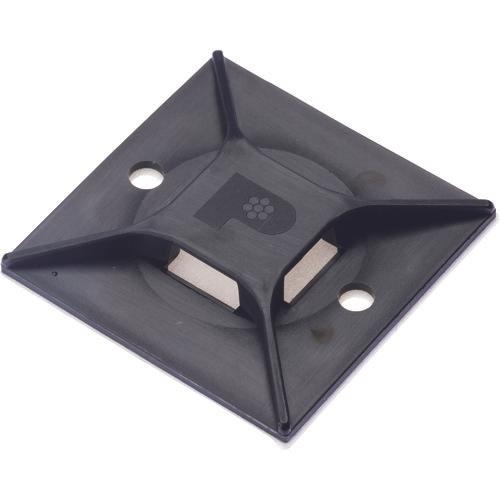

PANDUIT mount base with acrylic adhesive tape weather resistant black (200 pieces)
PANDUIT mount base with acrylic adhesive tape weather resistant black (200 pieces)
  • Load image into gallery viewer, PANDUIT mount base with acrylic adhesive tape weather resistant black (200 pieces)
  • Load image into gallery viewer, PANDUIT mount base with acrylic adhesive tape weather resistant black (200 pieces)

PANDUIT mount base with acrylic adhesive tape weather resistant black (200 pieces)

【order ID】8257215
【basic item number】ABM3HATT0*********************6260
【brand name】Panduit Corp. Japan Branch.
【minimum order quantity】1Pack
【packages】5
【manufacturer name】Panduit Corp. Japan Branch.
【Country of origin】
【Weight】757.0823568G
[Features] ● Can be quickly and efficiently fixed using a binding band. -Since it comes with adhesive tape, it can be easily attached by simply peeling it off from the mount. ●Two pieces come in one piece so that they can be easily removed from the backing paper. ●The cable ties can be inserted from four directions.

[Applications] ● Fixing cables, etc. ● Wiring and fixing electric wires in control panels and switchboards.

[Specifications] ● Color: Black ● Length (mm): 38.1 ● Width (mm): 38.1 ● Height (mm): 6.4 ● Cable tie width (mm): 2.3 to 8.9 ● Screw hole diameter (mm): 3.7 ●Thickness (mm): 6.4 ●Length (mm): 38.1 ●Maximum static load: 513g

[Specification 2] ● Length x width x height: 38.1 x 38.1 x 6.4 mm ● Maximum static load: 513 g ● Screw hole diameter: 3.7 Φ mm ● Outdoors ● Operating temperature range: -29 to 82°C ● UL flame retardant (94 V -2)

[Material/Finish] Weather resistant nylon 66

[Set contents/accessories]
-
