SanACE waterproof fan (120 x 38mm Dark Canyon 24V - lead wire specification)

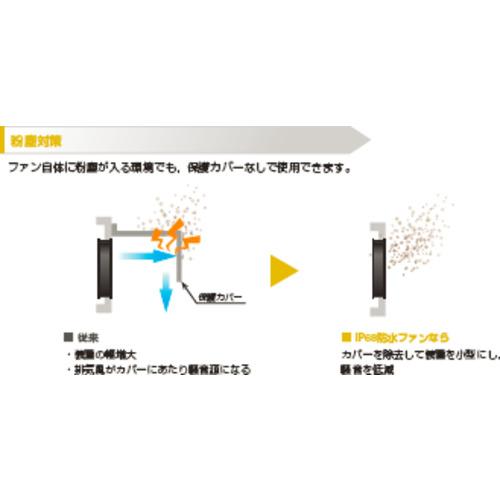

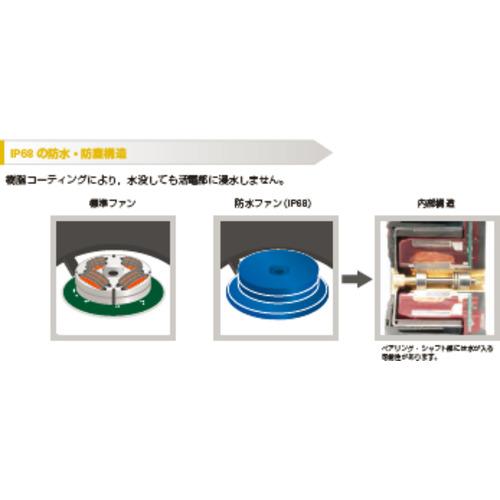

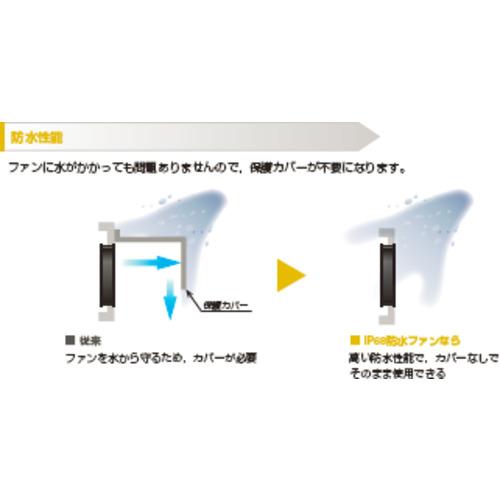

[Features] ● Protection class IP68 with excellent waterproof and dustproof performance. ● Can be used in an environment where water and dust fly. ●The winding and motor parts are coated with resin. ● Operates simply by connecting a DC power supply. ● (3 wires: Red+/Black-/Yellow sensor)

[Applications] ● Cooling heat sources such as communication equipment, control equipment, and power supply equipment. ●Blowing, circulating, and diffusing air.

[Specifications] ● Square dimensions (mm): 120 ● Thickness (mm): 38 ● Rated voltage (V): DC24 ● Air volume ([[M3]]/min): 2.8 ● Static pressure (Pa): 70.4 ● Sound pressure level (dB(A)): 39 Expected life (hours): 40000/60℃

[Specification 2] Motor protection function: Burnout protection function when restraint, power supply lead wire reverse connection protection function Dielectric withstand voltage: 500 V AC 50/60 Hz for 1 minute (between lead wire conductor and frame) Insulation resistance: 10 MΩ at 500 V DC megger Above (between lead wire conductor and frame) ●Sound pressure level: Value at 1m on fan intake side ●Operating temperature range: -30 to 70°C (no condensation) ●Fan power supply lead wire: + (red), - (black) ), sensor (yellow) Degree of protection: IP68

[Material/Finish] Frame: Resin (flame-retardant grade UL94V-0) Feathers: Resin (flame-retardant grade UL94V-1)

[Set contents/accessories]
-

【Note】
-
