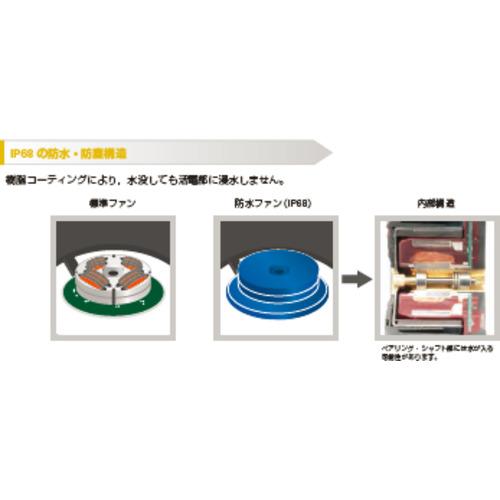

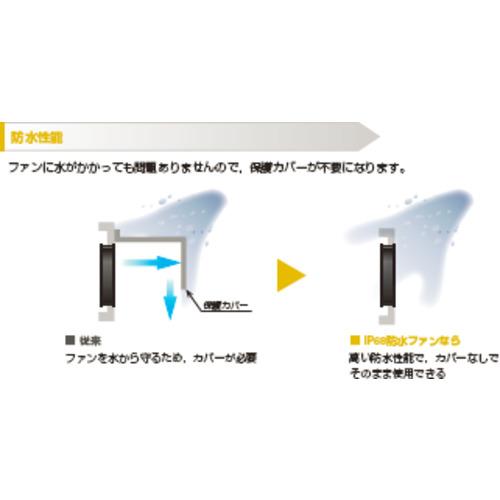

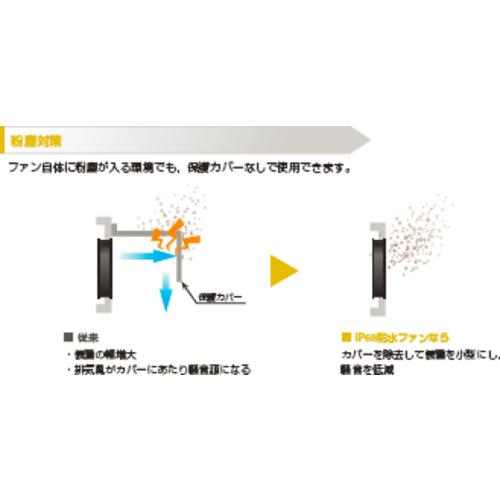

[Features] ● Protection class IP68 with excellent waterproof and dustproof performance. ● Can be used in an environment where water and dust fly. ●The winding and motor parts are coated with resin. ● Operates simply by connecting a DC power supply. ● (3 wires: Red+/Black-/Yellow sensor)
[Applications] ● Cooling heat sources such as communication equipment, control equipment, and power supply equipment. ●Blowing, circulating, and diffusing air.
[Specifications] Square dimension (mm): 80 Thickness (mm): 25 Rated voltage (V): DC24 Air volume ([[M3]]/min): 1.03 Static pressure (Pa): 35.3 Sound pressure level (dB(A)): 29 Expected life (hours): 60000/60℃
[Specification 2] Motor protection function: Burnout protection function when restraint, power supply lead wire reverse connection protection function Dielectric withstand voltage: 500 V AC 50/60 Hz for 1 minute (between lead wire conductor and frame) Insulation resistance: 10 MΩ at 500 V DC megger Above (between lead wire conductor and frame) ●Sound pressure level: Value at 1m on fan intake side ●Operating temperature range: -20 to 70°C (no condensation) ●Fan power supply lead wire: + (red), - (black) ), sensor (yellow) Degree of protection: IP68
