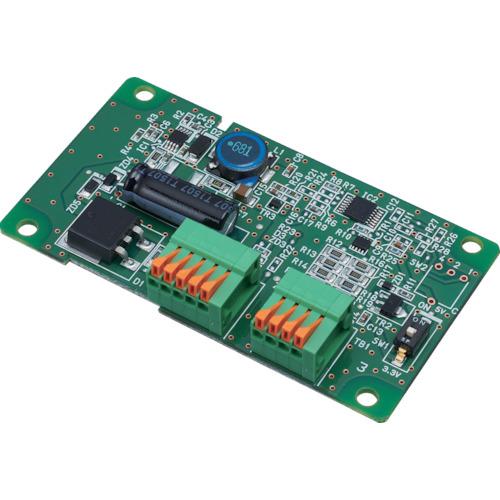

SanACE PWM controller Board type Voltage control

[Features]● For PWM control, a fan with PWM control function can be used without new circuit design, contributing to low power consumption and low noise of equipment. ●Can be used with a common power supply for fans with rated voltages of 12V/24V/48V. ●Up to 4 fans can be connected and used.

[Applications] ● Fan motor control and motion sensing. ●Low power consumption and low noise of the fan motor.

[Specifications] ● Width (mm): 45 ● Depth (mm): 17 ● Height (mm): 80 ● Rated voltage (V): 12/24/48 ● Input terminal control voltage range: 0 to 5.5 ● Output terminal PMW frequency (kHz): 25 ●Output terminal PMW signal output: 3.3V, 5V selectable ●Input terminal power input range (V): 7 to 60 ●Output PWM signal V_OH: 3.3V/5V selectable, frequency ●Control function : Voltage/Internal adjustment (variable resistor)/External adjustment*1 (variable resistor)/Thermistor*1 *1 Please prepare variable resistor and thermistor separately.

[Specification 2] - Operating temperature range: -20 to 70°C - Number of fans that can be connected: Up to 4 - Mounting method: screwed

[Material/Finish] - Substrate: FR-4
