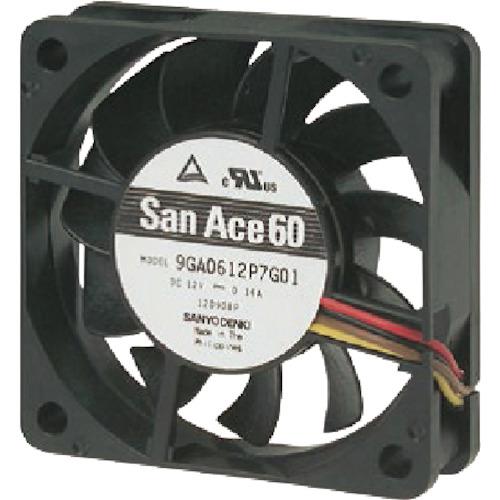

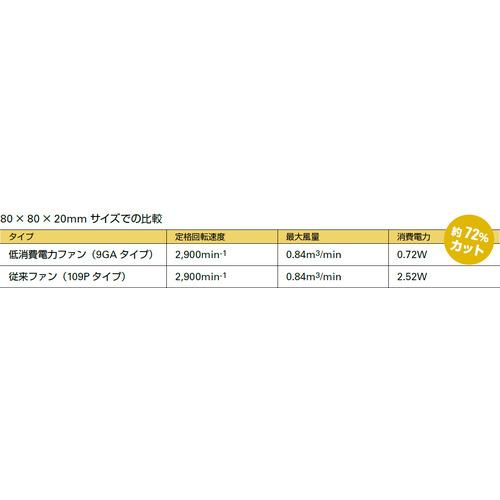

[Features] ● A fan that can significantly cut power consumption while maintaining cooling performance.
[Applications] ● Cooling heat sources such as communication equipment, control equipment, and power supply equipment. ●Blowing, circulating, and diffusing air.
[Specifications] Square dimension (mm): 80 Thickness (mm): 32 Rated voltage (V): DC12 Air volume ([[M3]]/min): 2.2 Static pressure (Pa): 294 Sound pressure level (dB(A)): 54 Expected life (hours): 40000/60℃
[Specification 2] ●Motor protection function: Burnout protection function when restrained, power supply lead wire reverse connection protection function ●Insulation withstand voltage: AC50/60Hz 500V 1 minute (between lead wire conductor part and frame) ●Insulation resistance: 10MΩ with DC500V megger Above (between lead wire conductor and frame) ●Sound pressure level: Value at 1m on fan intake side ●Operating temperature range: -20 to 70°C (no condensation) ●Fan power supply lead wire: + (red), - (black) ), sensor (yellow), control (brown)
