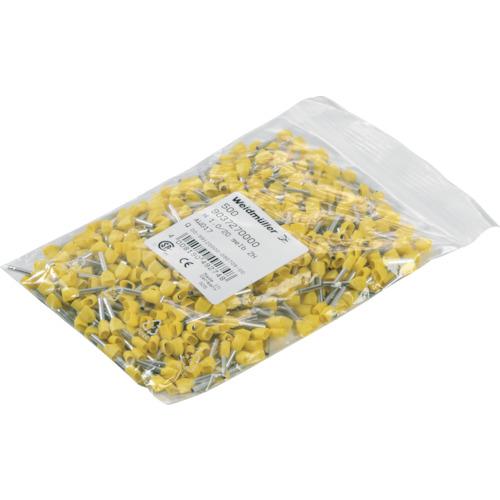

Weidmuller　Crimp terminal with insulation cover for 2pcs H6.0/29 ZH SW Ferrule

[Features]● The sleeve (ferrule) prevents wires from coming apart and contributes to quality improvement. ●We have prepared a wide variety of colors that can be color-coded by wire size. ●For connecting two electric wires.

[Applications] ● For spring connection, push-in terminal block, and various other European terminal blocks.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 6 ● Color: Black ● Overall length (mm): 29.0 ● L2 (mm): 18.0 ● D1 (mm): 4.5 ● Wire coupling range AWG: 10 ●Compatible wire: 6mm2/AWG 10

[Specification 2] ● Crimp terminal based on DIN 462228 part 4 ● Total length: 29 mm ● Conductor length: 18 mm ● Strip length: 4.5 mm ● Insulation width: 0.2 mm ● Insulation color: black

[Material/Finish] ● Copper (tin plating) ● Polypropylene (PP)

[Set contents/accessories]
-

【Note】
-
