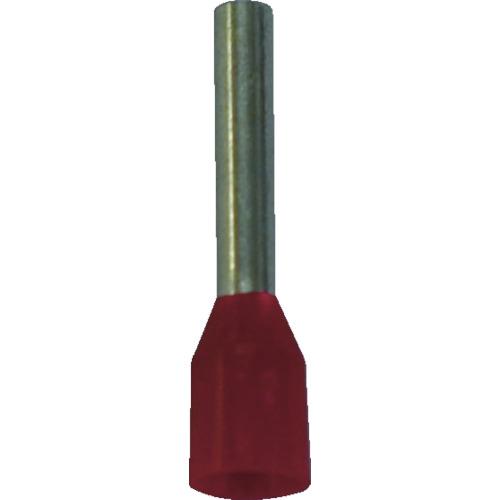

[Features]● The sleeve (ferrule) prevents wires from coming apart and contributes to quality improvement. ●We have prepared a wide variety of colors that can be color-coded by wire size.
[Applications] ● For spring connection, push-in terminal block, and various other European terminal blocks.
[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 1.5 ● Color: red ● Total length (mm): 14.0 ● Inner dimension (mm): 3.5 ● L2 (mm): 8.0 ● Wire coupling range AWG: 16 ●Applicable wire: 1.5mm2/AWG 16 ●Wire coupling range single wire mm: -
[Specification 2] ● Crimp terminal based on DIN 462228 part 4 ● Total length: 14 mm ● Conductor length: 8 mm ● Strip length: 10 mm ● Insulation width: 3.5 mm ● Insulation color: red
