[Features]● The sleeve (ferrule) prevents wires from coming apart and contributes to quality improvement. ●We have prepared a wide variety of colors that can be color-coded by wire size.
[Applications] ● For spring connection, push-in terminal block, and various other European terminal blocks.

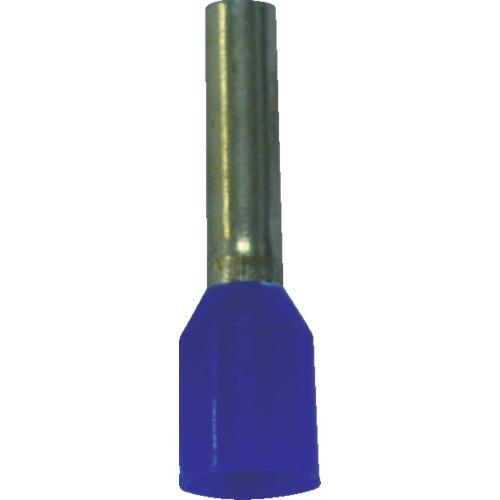

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 0.25 ● Color: light blue ● Total length (mm): 10.0 ● Inner dimension (mm): 1.8 ● L2 (mm): 6.0 ● Wire coupling range AWG : 24 ●Applicable wire: 0.25mm2/AWG 24 ●Wire coupling range single wire mm: -
[Specification 2] ● Crimp terminal based on DIN 462228 part 4 ● Overall length: 10 mm ● Conductor length: 6 mm ● Strip length: 8 mm ● Insulation width: 1.8 mm ● Insulation color: light blue
