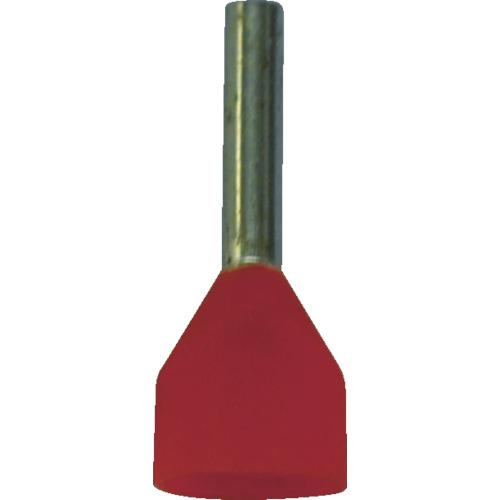

Weidmuller　Crimp terminal with insulation cover for 2pcs H0.5/14 ZH OR SV F

[Features]
●The sleeve (ferrule) prevents wires from coming apart and contributes to quality improvement.
●We have prepared a wide variety of colors that can be color-coded by wire size.
●For connecting two electric wires.

[Use]
● For spring connection, push-in terminal blocks, and various other European terminal blocks.

【specification】
- Wire coupling range Stranded wire ([[MM2]]): 0.5
Color: orange
- Overall length (mm): 14.0
- L2 (mm): 8.0
- D1 (mm): 1.4
●Wire coupling range AWG: 20
●Applicable wire: 0.5mm2/AWG 20

[Specification 2]
●Crimp terminals according to DIN 462228 part1
-Total length: 14mm
- Conductor length: 8mm
- Peeling length: 1.4mm
●Insulator width: 0.15mm
Insulator color: Orange

[Material/Finish]
●Copper (tin plating)
-Polypropylene (PP)

[Set contents/accessories]
-

【Note】
-
