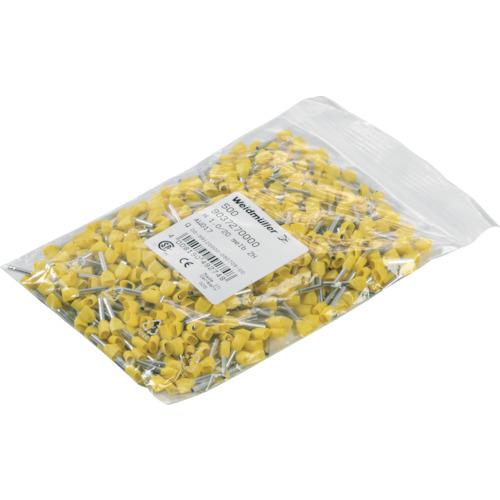

[Features]● The sleeve (ferrule) prevents wires from coming apart and contributes to quality improvement. ●We have prepared a wide variety of colors that can be color-coded by wire size. ●For connecting two electric wires.
[Applications] ● For spring connection, push-in terminal block, and various other European terminal blocks.
[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 2.5 ● Color: Blue ● Total length (mm): 19.0 ● L2 (mm): 10.0 ● D1 (mm): 2.8 ● Wire coupling range AWG: 14 ●Compatible wire: 1.5mm2/AWG 16
[Specification 2] ● Crimp terminal based on DIN 462228 part 1 ● Total length: 20 mm ● Conductor length: 12 mm ● Strip length: 2.2 mm ● Insulation width: 0.15 mm ● Insulation color: red
