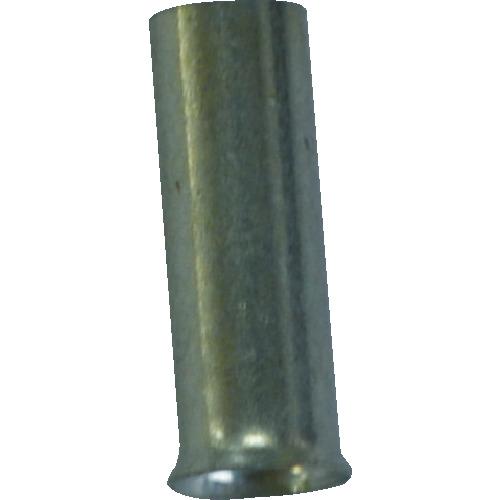

Weidmuller crimp terminal H95.0/25 ferrule

[Features]● The sleeve (ferrule) prevents wires from coming apart and contributes to quality improvement.

[Applications] ● For spring connection, push-in terminal block, and various other European terminal blocks.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 95 ● Overall length (mm): 25.0 ● Inner dimension (mm): 14.5 ● Wire coupling range Single wire mm: - Wire coupling range AWG: 3/0 ●Applicable wire: 95mm2/AWG 3/0

[Specification 2] ●Crimp terminal based on DIN 462228 part 45 ●Overall length/Peeled length: 25mm

[Material/Finish] Copper (tin plating)

[Set contents/accessories]
-

【Note】
-
