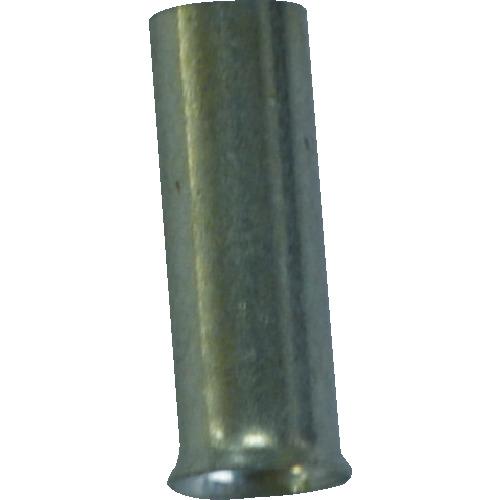

Weidmuller crimp terminal H0.5/10 ferrule

[Features]● The sleeve (ferrule) prevents wires from coming apart and contributes to quality improvement.

[Applications] ● For spring connection, push-in terminal block, and various other European terminal blocks.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 0.5 ● Total length (mm): 10.0 ● Inner dimension (mm): 1 ● Wire coupling range AWG: 20 ● Applicable wire: 0.5mm2/AWG 20

[Specification 2] ●Crimp terminal based on DIN 462228 part2 ●Overall length/Peeled length: 10mm

[Material/Finish] Copper (tin plating)

[Set contents/accessories]
-

【Note】
-
