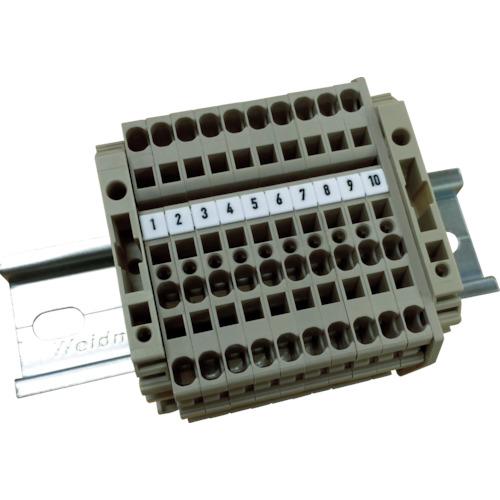

Weidmuller set terminal ZDU2.5 x5

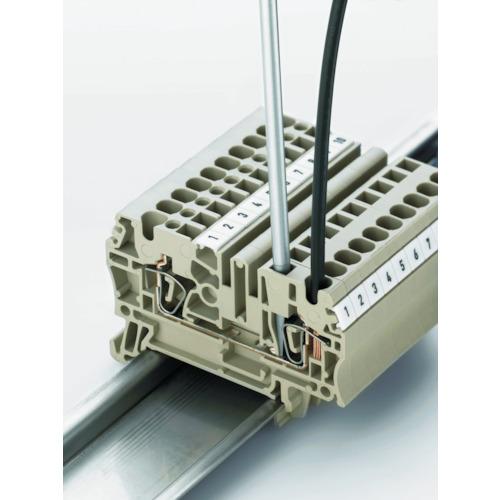

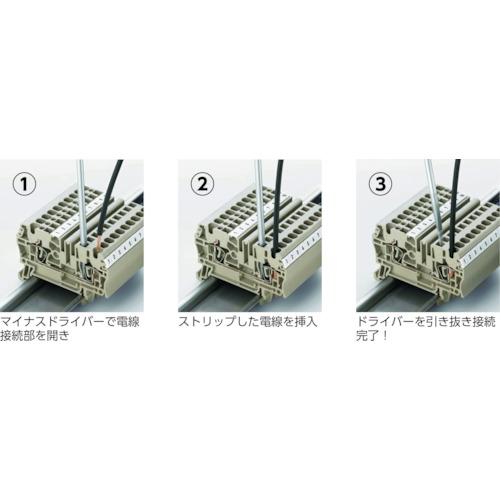

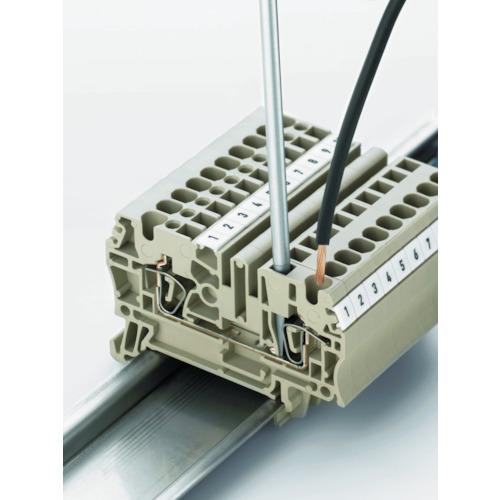

[Features]●European-style spring-loaded terminal block with excellent wiring savings is provided pre-assembled on the DIN rail. ● Pre-installed markers reduce man-hours and prevent incorrect wiring. ●Open the wire connector with INA screwdriver, insert the stripped wire, and pull out the screwdriver to complete the connection.

[Use] ●For wire relays and branch wiring.

[Specifications] ● Number of poles: 5 ● Length (mm): 70 ● Width (mm): 59.5 ● Height (mm): 46.5 ● Mounting pitch (mm): 60

[Specification 2] Wire size: 0.5 to 4.0 [[MM2]]/AWG NO.30 to 12 Rated voltage: IEC 800V/UL 600V Rated current: IEC 24A/UL 25A Applicable standards: CE, UL, CSA , EAC ● Coating stripping length: 10 mm ● Operating temperature range: -50 to 120°C ● Compatible tools: INA screwdriver, straight type (blade thickness x blade width) 0.6 x 3.5 mm ● Compatible screwdriver: SDS 0.6 x 3.5 x 100 (9008330000) - Rail width: 35mm - With marker: 1 from the left

[Material/Finish] ●Rail part: steel ●Terminal block part: PA (polyamide)

[Set contents/accessories]
-

【Note】
-
