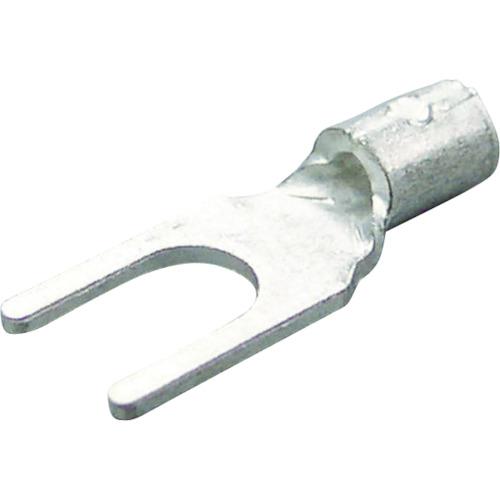

Nichifu bare crimp terminal Y-shaped (100P) stranded wire 0.25-1.65 outer dimension 5.6

[Features] ● A bare crimp terminal that can be attached without completely removing the screw, as one of the mounting holes on the contact surface (tongue) is open.

[Applications] ● For connecting mild steel stranded wires or single wires.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 0.25 to 1.65 ● Stud diameter (mm): 3.7 ● Total length (mm): 15.0 ● Inner dimension (mm): 1.7 ● JIS standard product: ×● Wire connection range Single wire mm: 0.57 to 1.44 Wire connection range AWG: 22-16 Color: Silver

[Specification 2] Y type / single wire compatible type

[Material/Finish] Terminal: Oxygen-free copper (C1020)/Electrotin plating

[Set contents/accessories]
-

[Caution] ●Copper wire only. ●Please use within the wire connection range. ●Please use the applicable crimping tool specified by IS standard or our company.
