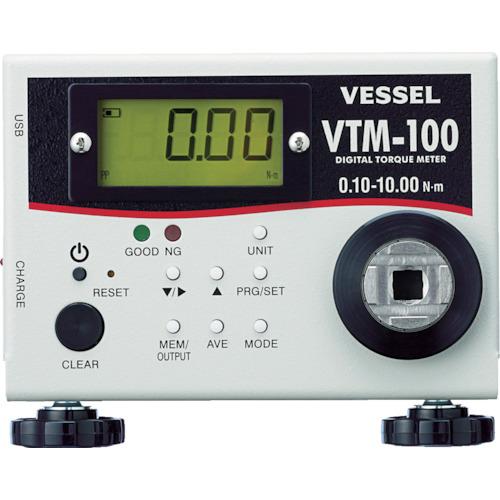

[Features] ●Ideal for checking and managing the torque of electric screwdrivers. ●Two types of measurement modes (peak hold/peak down hold) can be used to check the accuracy of the torque screwdriver used for return torque measurement. (insertion angle 9.5sq. (3/8)) ●Maximum/minimum/average values can be obtained from multiple measurements. ●It is lightweight and compact and rechargeable, making it convenient for carrying around and measuring at the factory. ●Up to 800 measurement data can be stored in the main unit. (automatic/manual switchable). It can also be imported and managed on a computer using a USB cable. (The management format can be downloaded from VESSEL homepage.) ●Auto power off function saves power. (Available for up to 12 hours)
[Use] ●For torque checks and torque management of electric drivers, torque wrenches, and torque drivers.
【specification】 - Insertion angle: 9.5sq. (3/8) - Compatible models: VE-1500 (EPA), VE-2000 (EPA) - Width (mm): 160 - Depth (mm): 55 - Height (mm): 125 - Socket mating part dimensions (mm): 20 x 20/ 9.5 x 9.5 - Length x width x thickness (mm)
[Specification 2] Accuracy VTM-8: ±0.5% (leading * ±3 digits for 199 digits or less), VTM-10/100: ±0.5% (leading * ±1 digits for 199 digits or less) -Power supply: Ni-Cd battery 6V cell (700mAh) - Charging time: about 3 hours Continuous use time: about 12 hours Operating temperature and humidity range: Temperature 19°C to 29°C / Humidity 48 to 63% RH (no condensation) ●Data memory: 800 measured values ●Data output: ASCII format (baud rate 19200bps) ●CE, RoHS Battery life: 300 or more recharges (however, it varies depending on usage conditions) ●Auto power off: Power off after leaving for 10 minutes
[Material/Finish] -
[Set contents/accessories] ●Accessories: Torque adapter No.VJ-3, No.VJ-10, measuring bit No.D73 H5×50 No.D76 H5×50 No.B34 H5×50 No.A16 H5×50, AC adapter (input AC100 to 240V, 50/60Hz, 0.3A output DC12V, 0.5A), inspection report, calibration certificate, traceability system chart, instruction manual
【Note】 ●Impact type power tools cannot be measured. ●Renewal of calibration certificate is charged separately. ●USB cable for data import is not included. Please purchase a USB cable A to B type (both ends male) separately. ●Be sure to read the instruction manual for safe use. ●Applicable part number is a guideline.
