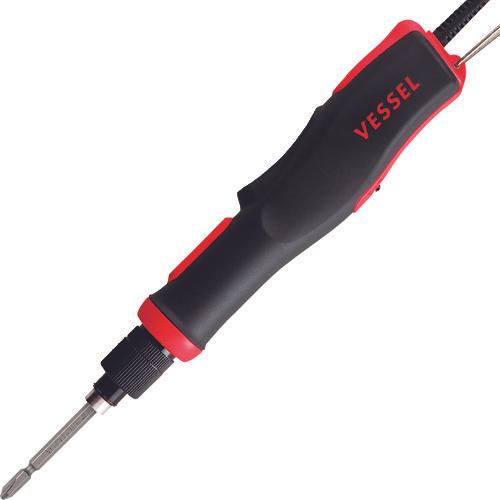

VESSEL Electric Driver No. VE-6000P-DL5

[Features]
●The grip is easy to hold with a gel pad that absorbs vibrations, making it less tiring. (ergonomic design)
●Maintenance-free, no need to replace carbon brushes.
●Prevents erroneous adjustment with a tamper-proof sleeve.
● There is no connection connector on the main unit side, and the power cord is integrated (2.5m).

[Use]
●For control of simultaneous use of multiple models on the assembly line, interlocking with peripheral devices, etc.

【specification】
- Output torque (N m): 1.6 to 4.5

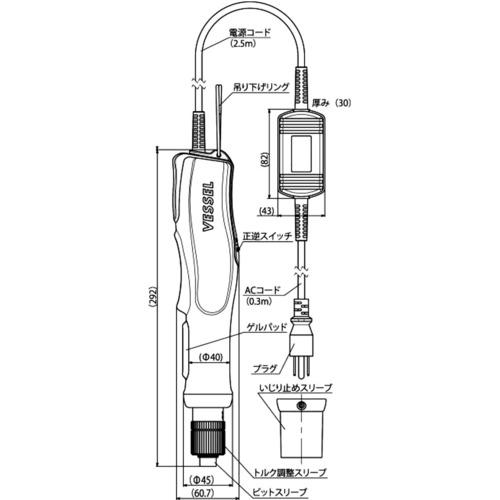

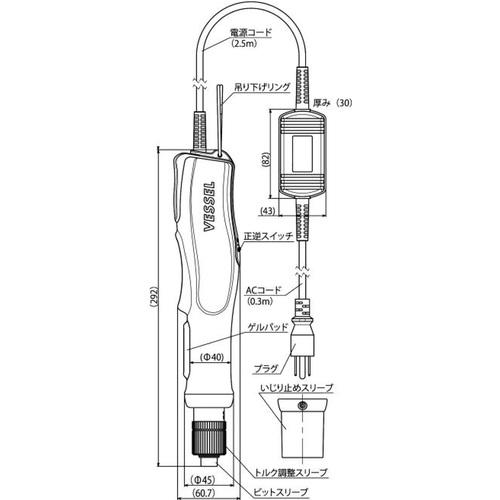

- Total length (mm): 290
No-load rotation speed (min [[-1 power]]) strong: 1000
No-load rotation speed (min [[-1 power]]): 1000
- Compatible screw (mm) Small screw: M4.0 to 5.0
- Compatible screw (mm) tapping screw: ≤ 4
Power consumption (W): 120
-Power cord length (m): 2.5
Attached bit: B36 [[+]] 2 x 70 2 pieces

[Specification 2]
-Torque adjustment ring: 16 steps x 8 scales
●Push start type
●PSE standard

[Material/Finish]
● PC + elastomer

[Set contents/accessories]
Tamper-proof sleeve: 1 piece
● Set screw (M3 × 3): 2 pieces
●Hex wrench (H1.5): 1 piece
- 1 3P2P conversion adapter
Suspension ring: 1 piece
●Instruction manual

【Note】
● Read the instruction manual carefully and check that the wiring is correct before turning on the power.
● Do not use anything other than a PLC (photocoupler input) for the device connected to the signal output line.
●Do not connect the + side of the power supply directly to the signal output line.
●There will be no current limiting resistor, and the photocoupler will be damaged.
●Do not drive relays, motors, lamps, etc. directly connected to the signal output line.
