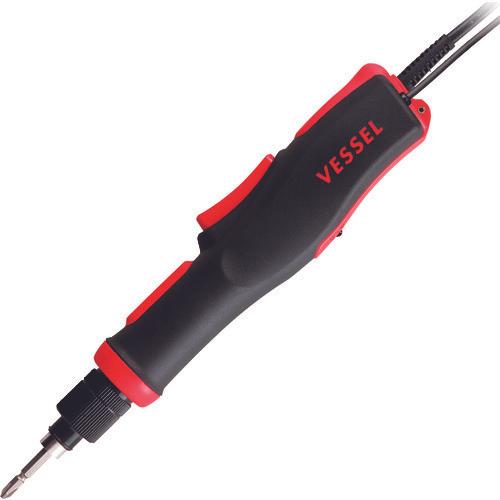

[Features] ●The grip is easy to hold with a gel pad that absorbs vibrations, making it less tiring. (ergonomic design) ●Maintenance-free, no need to replace carbon brushes. ●Prevents erroneous adjustment with a tamper-proof sleeve. ● There is no connection connector on the main unit side, and the power cord is integrated (2.5m). ●The speed of screw tightening work has been increased by 20%. (Compared with VE-5000 and VE6000.) ● Uses a slotless brushless motor. ● Tightening accuracy, efficiency, and maintainability are improved.
[Use] ●For control of simultaneous use of multiple models on the assembly line, interlocking with peripheral devices, etc.

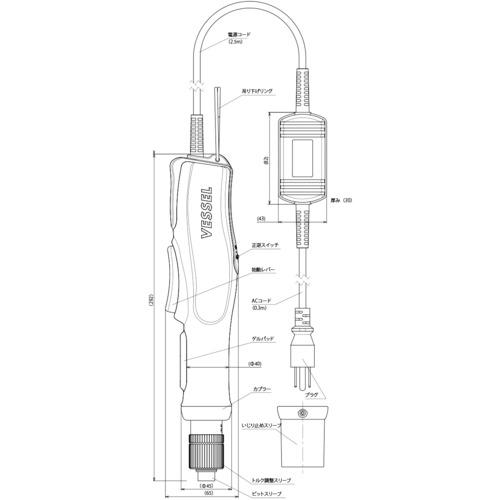

【specification】 - Output torque (N m): 0.6 to 2.5 - Total length (mm): 290 No-load rotation speed (min [[-1 power]]) strong: 1200 No-load rotation speed (min [[-1 power]]): 1200 - Compatible screw (mm) small screw: M3.0 to 4.0 - Bit opposite side (mm): 6.35 - Compatible screw (mm) tapping screw: 2.6 to 3.5 Power consumption (W): 120 -Power cord length (m): 2.5
[Specification 2] ● Lever type Rated input: AC100V 50/60Hz 120W -Attached bits: A14 +2 x 65...2 -Torque adjustment ring: 16 steps x 8 scales
【Note】 ● Read the instruction manual carefully and check that the wiring is correct before turning on the power. ● Do not use anything other than a PLC (photocoupler input) for the device connected to the signal output line. ●Do not connect the + side of the power supply directly to the signal output line. ●There will be no current limiting resistor, and the photocoupler will be damaged. ●Do not drive relays, motors, lamps, etc. directly connected to the signal output line.
