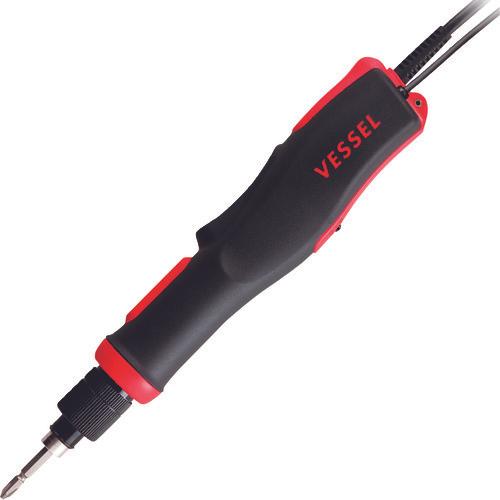

[Features] ●The speed of screw tightening work has been increased by 20%. (Comparison with VE-5000 and VE6000.) ● Equipped with 3 types of output signals and 1 type of input signal line that can be controlled by an external device (PLC). ● Uses a slotless brushless motor. ●Fastening accuracy, efficiency and maintainability are improved. ● Easy-to-use ergonomic design with a shock-absorbing gel pad for a firm grip. ●Prevents erroneous adjustment with a tamper-proof sleeve. ●It is a power cord integrated type with no connection connector on the main body side. (2.5m)
[Use] ●For control of simultaneous use of multiple models on the assembly line, interlocking with peripheral devices, etc.

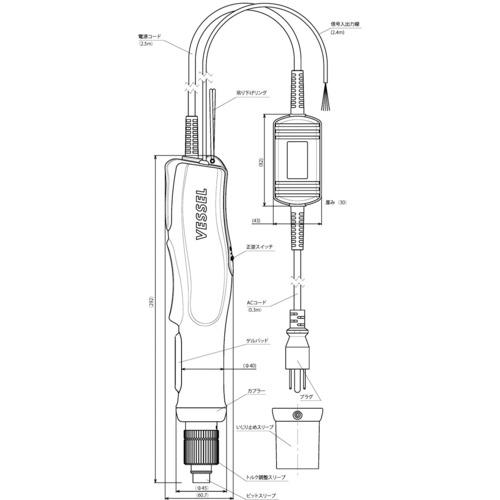

【specification】 - Output torque (N m): 0.6 to 2.5 - Total length (mm): 290 No-load rotation speed (min [[-1 power]]): 1200 ●Applicable screw (mm) small screw: M3 to 4 - Bit opposite side (mm): 6.35 - Compatible screw (mm) tapping screw: 2.6 to 3.5 Power consumption (W): 120 -Power cord length (m): 2.5
[Specification 2] ●Push start type Power supply: AC100V -Torque adjustment ring: 16 steps x 8 scales ●Compatible bit width across flats: 6.35mm
【Note】 ● Read the instruction manual carefully and check that the wiring is correct before turning on the power. ● Do not use anything other than a PLC (photocoupler input) for the device connected to the signal output line. ●Do not connect the + side of the power supply directly to the signal output line. ●There will be no current limiting resistor, and the photocoupler will be damaged. ●Do not drive relays, motors, lamps, etc. directly connected to the signal output line.
