[Features] ●ESD protection type. ●Maintenance-free with no need to replace carbon brushes with a brushless motor. ● Ergonomically designed grip. Easy to grip and less fatigue. You can put your thumb on the stepped part of the grip and pull it down to reduce the burden on your wrist. With a gel pad that absorbs vibration. The grip position is easy to understand. ●The main body is made of non-slip elastomer resin and tough polycarbonate resin. ●It has a long service life that does not require replacement for 3 years under normal use.

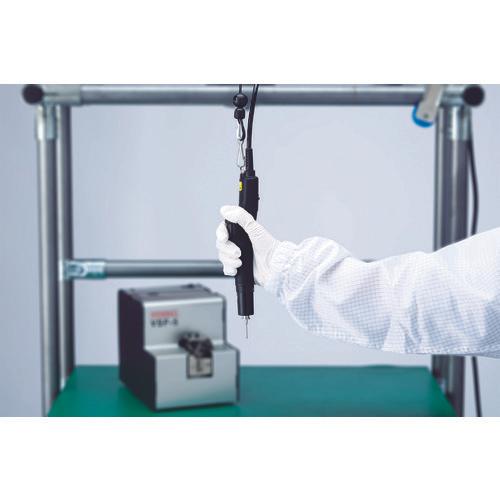

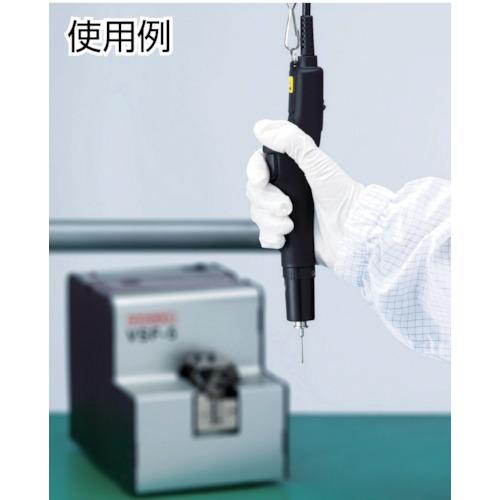

[Use] ● For the assembly of optical equipment such as precision equipment and lenses, and the assembly of hard disks.
【specification】 - Output torque (N m): 0.01 to 0.15 - Total length (mm): 200 No-load rotation speed (min [[-1 power]]) strong: 1000 No-load rotation speed (min [[-1 power]]): Strong 1000 / Weak 700 - Compatible screw (mm) Small screw: M1.0 to M1.7 No-load rotation speed (min [[-1 power]]) weak: 700 - Bit opposite side (mm): 4 - Compatible screw (mm) tapping screw: 1.0 to 1.5 Power consumption (W): DC12 15 -Power cord length (m): 2 - Cord length (m): 2 - Starting method: Lever type

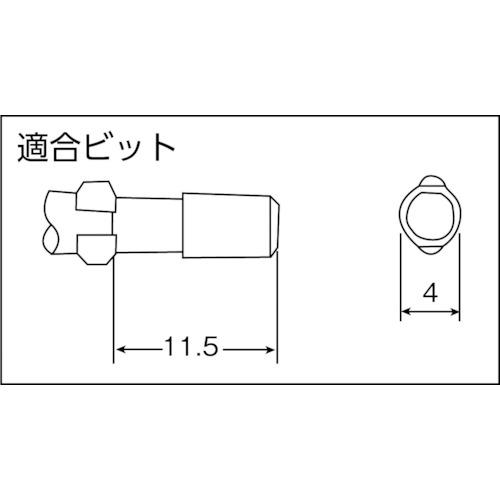

[Specification 2] ● Lever start type Power supply: DC type ●Power cord length: 2m - Bit diameter: 4 mm -Torque adjustment ring: 24 steps x 5 scales -VESSEL compatible bit: D73
[Material/Finish] -
[Set contents/accessories] ●Power cord (2.0m) ● Controller VCT-20 - 1 AC cable (1.8m) Tamper-proof sleeve (installed) ●Two set screws (M3×3) - 1 hexagon wrench (H1.5) ●1 3P2P conversion adapter ●Instruction manual ● 3P/6P conversion code ● Attached bit: D73 (+) 0 x 1.4 x 40 / (+) 0 x 1.7 x 40 1 piece each
