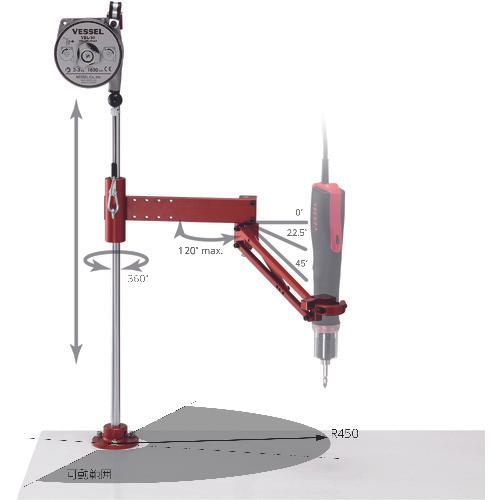

[Features] ● The pressing load of the screwdriver is greatly reduced, enabling stable vertical movement. ●Ideal for work environments with limited space such as cell production tables. ●Work loss due to tilting of screws is prevented, and screws can be securely tightened. ●The tool balancer reduces the weight of the entire arm and screwdriver. ●Aluminum parts are used extensively to reduce the load. ●The horizontal arm length can be adjusted and the arm tilt angle can be changed in three steps (0°, 22.5°, 45°).
[Use] ● For work on the assembly line.

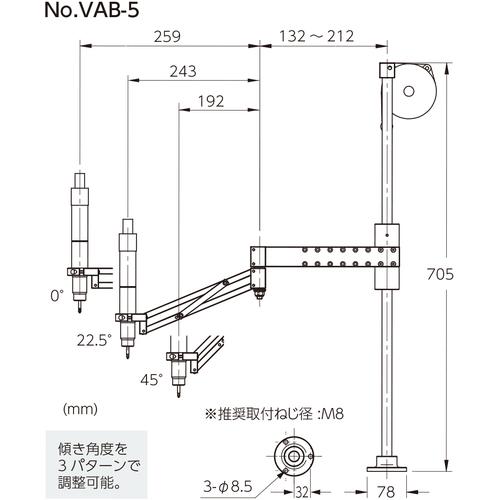

【specification】 - Maximum reaction force (N m): 5 -Compatible models: All VE series models -Main column height x main column diameter (mm): 705 x φ16
[Specification 2] ●Adaptive tool maximum load: 1.2 kg ●Adaptive tool mounting outer diameter: 25 to 42 mm - Movable range: ~ R450 (when the tip arm angle is 22.5 °) -Recommended mounting screw: M8 x 3
[Material/Finish] - Main pillar: iron, holder -Arm part: aluminum
【Note】 ●Please make sure that your electric screwdriver is a compatible model before installation. ●Incorrect installation may result in equipment failure or operator injury. ●Unplug the electric screwdriver before installing. ●About installation of this product Do not use a mantis clamp vise. ●Do not attach products other than compatible models or other companies' products to this product.
