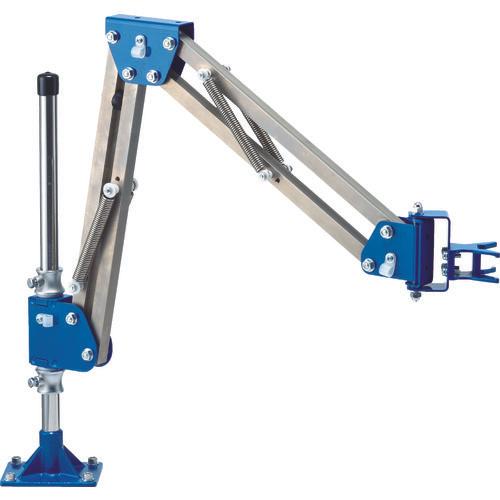

[Features]- A link arm type that connects two arms with a link structure, and the tool holder rotates. ●The range of movement of the arm is wide and the degree of freedom is high. ●The power tool can be moved in parallel, ensuring stable tightening accuracy. ● The spring has a tool balancer effect that reduces the weight load. ●Reduces the recoil of the power tool applied to the gripping hand. ●Reduces grip strength and arm fatigue due to the weight of power tools. ● You can work by attaching it to a table or the like. ●Since the arm can be moved vertically, screws can be tightened straight, reducing the number of failures during driving. ● Uniform tightening operation is possible, reducing variation.
[Use] ● For work on the assembly line.

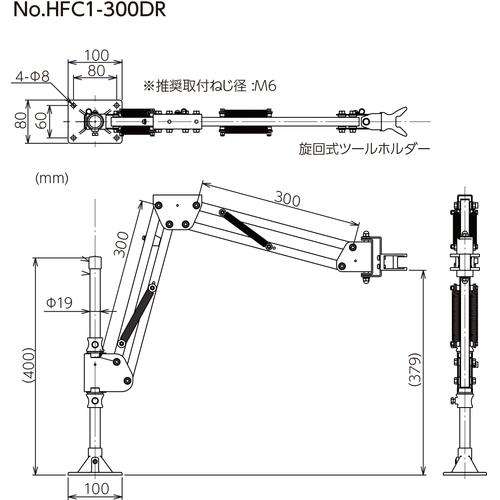

[Specifications] - Maximum reaction force (N m): 4.5 - Compatible models: VE-3000, VE-4000 series, VE4500, VE-5000 series, VE-6000 series - Main column height x main column diameter (mm) : 400 x φ19 Holder rotation angle: 180°

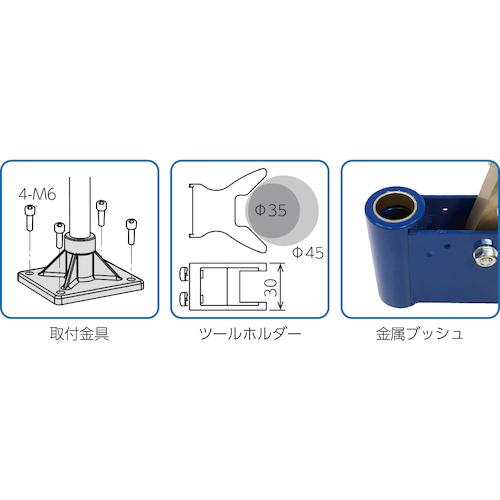

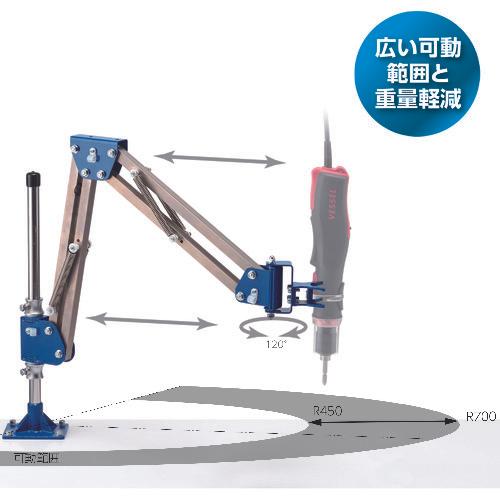

[Specification 2] ● Applicable tool weight: 0.8 to 1.2 kg ● Applicable tool mounting outer diameter: 35 to 45 mm ● Horizontal movable range: R450 to 700 mm ● Recommended mounting screws: M6 x 4
[Materials/Finish] -Main pillar: Iron -Arm: Aluminum -Holder part: Iron
[Set Contents/Accessories] Replacement kit, rubber sheet, hose band
[Caution] ●Please make sure that your electric screwdriver is a compatible model before installation. ●Incorrect installation may result in equipment failure or operator injury. ●Unplug the electric screwdriver before installing. ●About installation of this product Do not use a mantis clamp vise. ●Do not attach products other than compatible models or other companies' products to this product.
