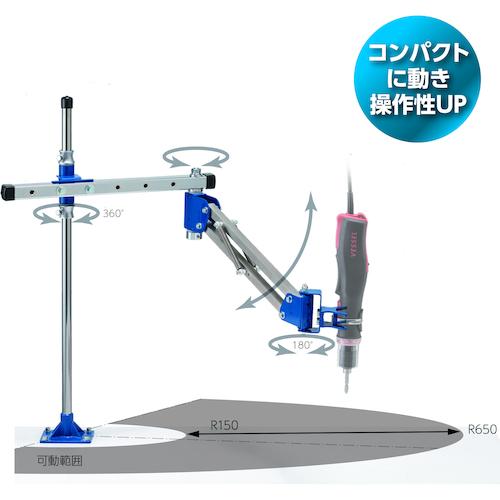

[Features] ●Suitable for work in narrow areas and small workpieces. ●It is a model with a tool load of up to 1 kg, which reduces the cost of parts such as pipes and metal fittings. ●The attached screwdriver can be moved vertically/horizontally/at the same angle. ●Since the tool mounting part rotates, you can operate the tool without changing hands, even during work that requires a lot of movement. ●Since the tool can move freely up to the side of the support, you can work in a compact work space. ●The number of springs is reduced, and it moves up and down lightly and stably.
[Use] ● For work on the assembly line.

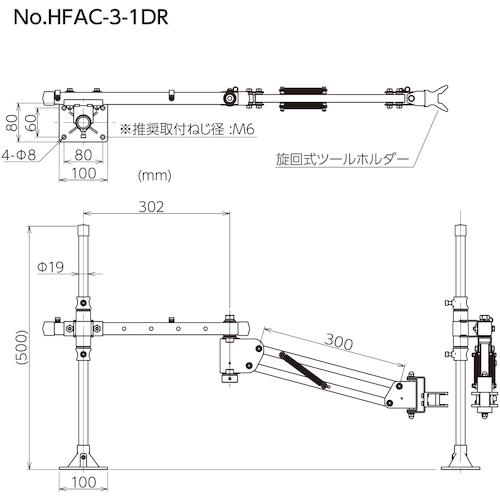

[Specifications] Applicable models: VE-3000, VE-4000 (P, AC, PAC), VE-4500 (P, AC, PAC), VE-5000 (P, SOP, PSOP), VE-6000 (P, SOP, PSOP) - Maximum reaction force (N/m): 4.5 - Arm length (mm): 302 + 300 - Movable range (mm): R150 ~ 650

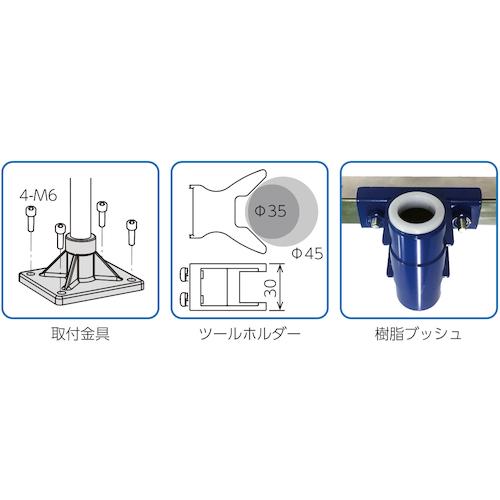

[Specification 2] ● Applicable tool weight: 0.6 to 1.0 kg ● Applicable tool outer diameter: Φ35 to 45 mm ● Operating temperature/humidity: 0 to 40°C/10 to 80% RH ● Installation location: indoors
[Materials/Finish] ●Main pillar: Stainless ●Holder: Iron ●Arm part: Aluminum + Iron
[Set Contents/Accessories] ●Replacement kit ●Rubber sheet ●Hose band
[Caution] ●Please make sure that your electric screwdriver is a compatible model before installation. ●Incorrect installation may result in equipment failure or operator injury. ●Unplug the electric screwdriver before installing. ●About installation of this product Do not use a mantis clamp vise. ●Do not attach products other than compatible models or other companies' products to this product.
