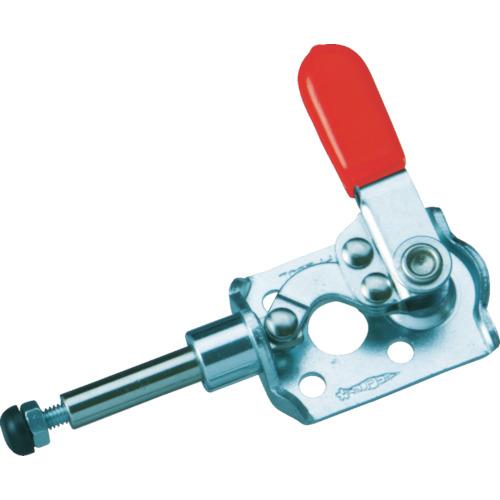

SUPER TOOL Push/Pull Toggle Clamp (R) Base Type: Flange

[Features]
-Right handle
●Stainless steel is used for the caulking (supporting) pins of most models to support long-term use.

[Use]
●Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs.

【specification】
- Stroke (mm): 15
- Handle operation angle (°): 180
- Total length (mm): 82
●Clamping force (kN): 0.5
-Attached bolt diameter: M4 x 22

[Specification 2]
●Push-pull combination type
●Flange base

[Material/Finish]
Rolled steel for general structure
-Screw tip rubber: Nitrile rubber

[Set contents/accessories]
●Clamp bolt: TNG0422

【Note】
●The indicated bearing capacity is the maximum value. Please note that the value will decrease depending on the presser foot position, bolt adjustment, etc.
