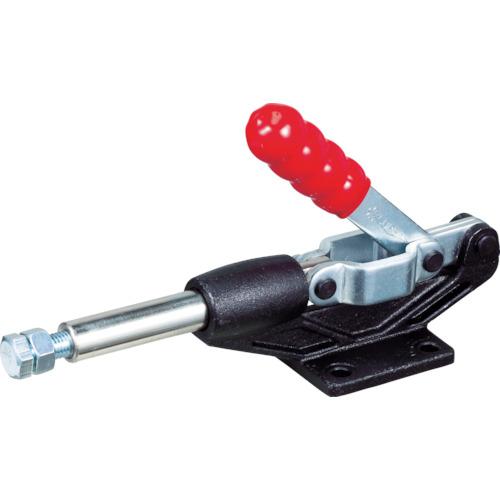

SUPER TOOL horizontal push type toggle clamp Total length: 346mm Clamping force: 6.8kN

[Features]
●Stainless steel is used for the caulking (supporting) pins of most models, which supports long-term use.

[Use]
●Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs.

【specification】
- Total length (mm): 346
-Clamping force (kN): 6.8
-Attached bolt diameter: M12 x 50
- Stroke (mm): 60
- Handle operation angle (°): 180
- Bearing capacity (kN): 6.8

[Specification 2]
● Horizontal push type
●Flange base

[Material/Finish]
Rolled steel for general structure

[Set contents/accessories]
●Clamp bolt nut: TNN1250

【Note】
●The indicated bearing capacity is the maximum value. Please note that the value will decrease depending on the presser foot position, bolt adjustment, etc.
