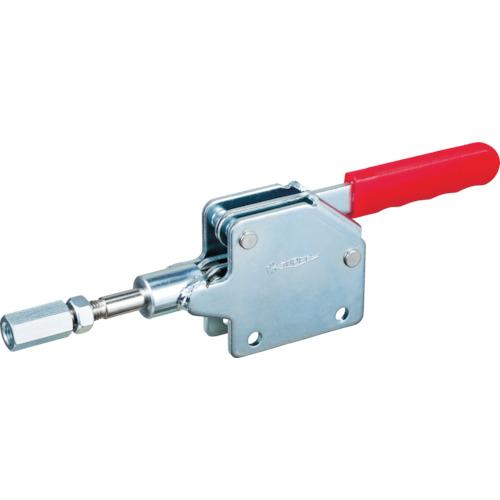

SUPER TOOL horizontal push type toggle clamp Total length: 319mm Clamping force: 2.95kN

[Features]
●Stainless steel is used for the caulking (supporting) pins of most models, which supports long-term use.

[Use]
●Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs.

【specification】
- Total length (mm): 319
●Clamping force (kN): 2.95
-Attached nut diameter: M12
- Stroke (mm): 23
- Handle operation angle (°): 45
- Bearing capacity (kN): 2.95

[Specification 2]
● Horizontal push type
●Straight base

[Material/Finish]
Rolled steel for general structure

[Set contents/accessories]
● Coupling nut set: TCN12S

【Note】
●The indicated bearing capacity is the maximum value. Please note that the value will decrease depending on the presser foot position, bolt adjustment, etc.
