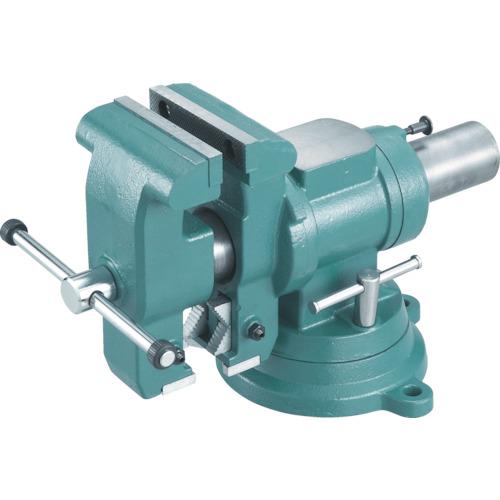

TRUSCO multi-combi vise 125mm

[Features]
● The strong round body type vise is made of tough cast iron and has durability.

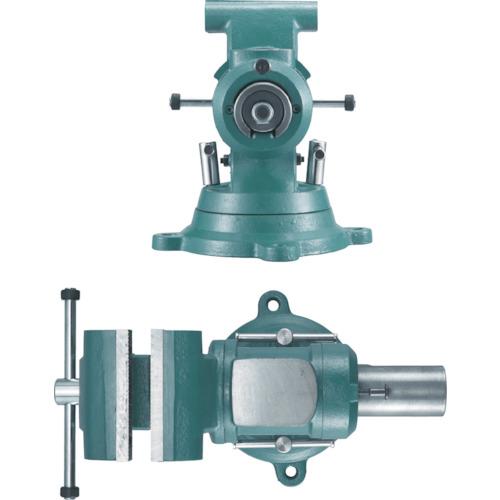

● Can be rotated 360° up and down, and can be rotated 360° parallel if it is equipped with a rotating table.

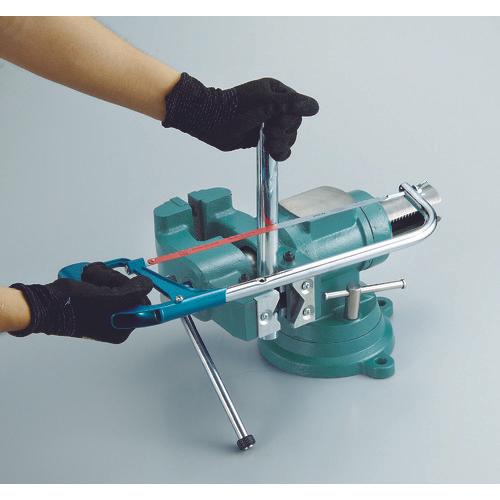

● Can be used as a vise for pipes and odd-shaped objects.
●It has an anvil function.
●Each base is completely quenched.

[Use]
-

【specification】
- Total length (mm): 416
- Width (mm): 180
- Height (mm): 270
- Mouth width (mm): 129
- Mouth opening (mm): 100
- Mouth depth (mm): 77
- Mounting dimensions (mm) F: 143
- Mounting dimensions (mm) G: 202
- Mounting dimensions (mm) H: 103
- Mounting hole dimensions (mm): 13
●Clamping force (kN): 24.5

[Specification 2]
-Pipe diameter that can be pinched: Min12mm-Max70mm

[Material/Finish]
Body: Cast iron (FC250)
- Shaft, handle, mouthpiece: steel

[Set contents/accessories]
● Rotating table

【Note】
-
