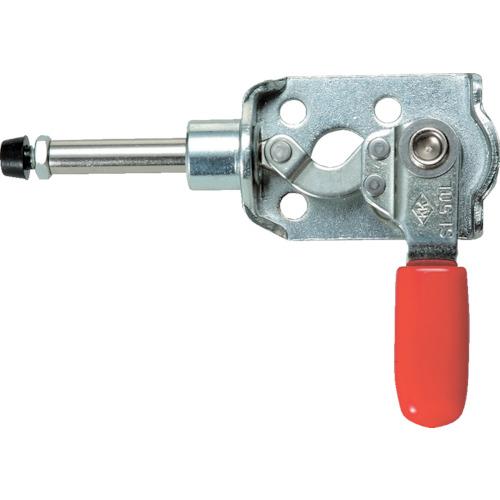

KAKUTA Push/Pull Toggle Clamp No. SL50L

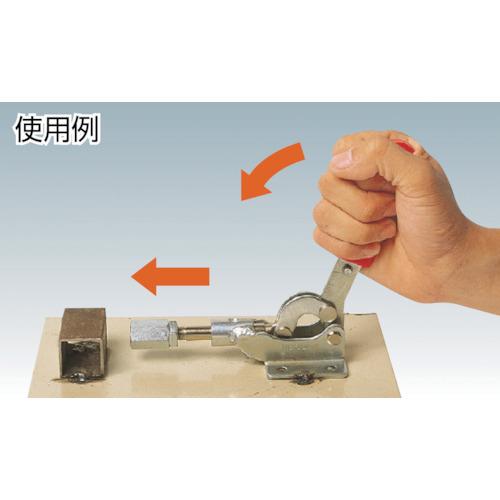

[Features] ● Rivets are made of stainless steel. ● When the handle is laid horizontally, the shaft is pulled. ●The shaft comes out when the handle is raised from the horizontal position.

[Use]
-

[Specifications] ● Product engraving: No.SL50L ● Overall length (mm): 82 ● Pushing force (kN): 0.5 ● Tip screw diameter: M4 ● Stroke (mm): 16

[Specification 2] ● Horizontal push type ● Flange base

[Material/Finish] Steel (SPCC)

[Set Contents/Accessories] Spindle for KC-SL10/50

[Caution] ●The same spindle is used for KC-SL10 and SL50. (Sold separately.)
