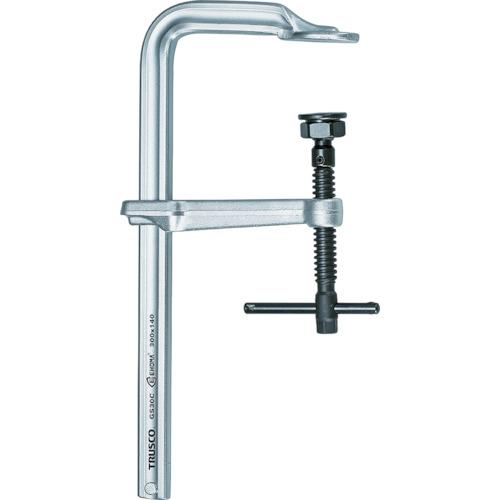

TRUSCO Ehoma L-type clamp (strong type) heavy type

[Features] ● The hexagonal shaft head can be tightened with a wrench, allowing for more secure tightening. ●Maximum tightening pressure for 150mm clamp is 13.5kN. ● The powerful adapter can be tightened at an angle of up to approximately 35°.

[Use]
-

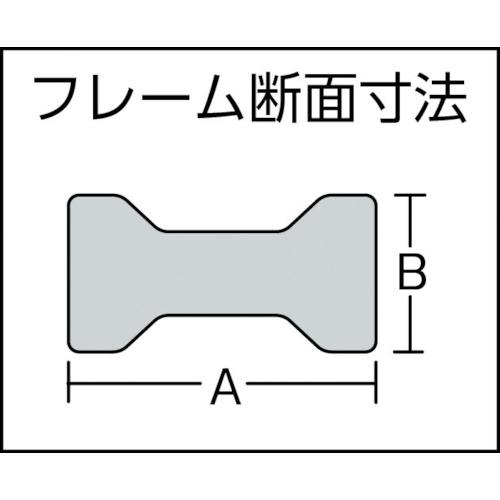

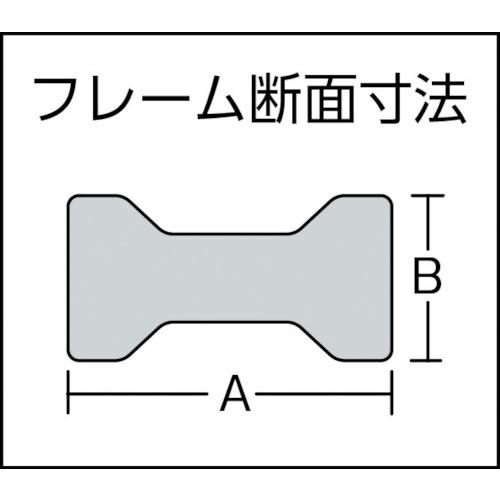

[Specifications] ●Total length (mm): 388 ●Maximum mouth opening (mm): 250 ●Body (mm): 120 ●Frame dimensions (mm) A: 30.0 ●Frame dimensions (mm) B: 15.0

[Specification 2] ● Standard mounting pad: GSSS-FP ● Width across flats of screw head: 19 mm

[Material/Finish] Special steel

[Set contents/accessories]
-

【Note】
-
