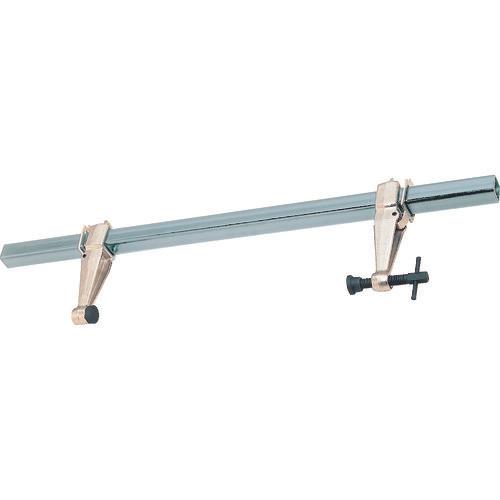

[Features]● The square pipe can be separated from the main body, and the clamp range can be freely selected by using square pipes of different lengths. ●The adapter can be easily removed, and the fixed adapter and male threaded adapter can be freely recombined for convenient use according to the work. ●The standard square pipe uses high-strength steel (STKT590), which is lighter and stronger than the square pipe on the market. ● Work in the thrust direction is also possible.

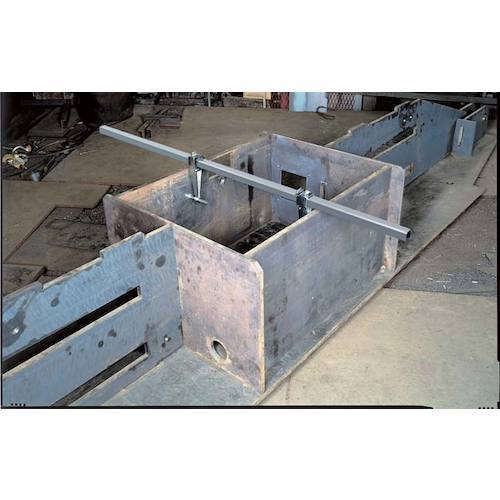

[Applications] ● Temporary fixing of various workpieces such as steel frames, bridges, civil engineering, including welding work.
[Specifications] ● Chest depth (mm): 150 ● Clamping range (mm): 0 to 750 ● Allowable load (kN) (when clamping range is 750 mm): 3.9 ● Guaranteed load (kN) (body only): 30 ● Applicable Square pipe (mm): □40 pipe thickness 3.5
[Specification 2] Standard accessory square pipe: 40 x 1000 x t 3.5mm
[Material/Finish] Special steel
[Set contents/accessories] -
[Caution] ●The weight includes the standard square pipe.
