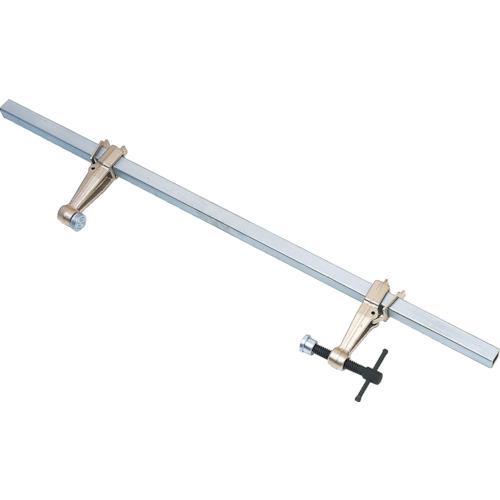

SUPER TOOL SUPER TOOL Setter (compact and lightweight type) clamping range: 0-700mm pocket depth: 100mm

[Features]● The square pipe can be separated from the main body, and the clamp range can be freely selected by using square pipes of different lengths. ●The adapter can be easily removed, and the fixed adapter and male threaded adapter can be freely recombined for convenient use according to the work. ●The standard square pipe uses high-strength steel (STKT590), which is lighter and stronger than the square pipe on the market. ● Work in the thrust direction is also possible.

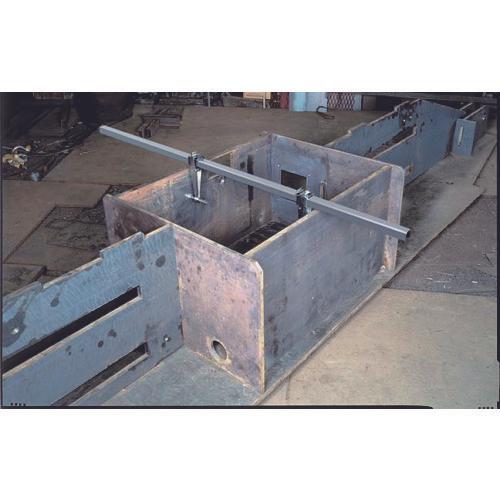

[Applications] ● Temporary fixing of various workpieces such as steel frames, bridges, civil engineering, including welding work.

[Specifications] - Bore depth (mm): 100 - Clamping range (mm): 0 - 700 - Allowable load (kN) (clamping range of 750 mm): 3.5 - Guaranteed load (kN) (body only): 10 - Applicable Square pipe (mm): □25 pipe thickness 3.0

[Specification 2] Standard accessory square pipe: □ 25 x 900 x t 3.0 mm

[Material/Finish] Special steel

[Set contents/accessories]
-

[Caution] ●The weight includes the standard square pipe.
