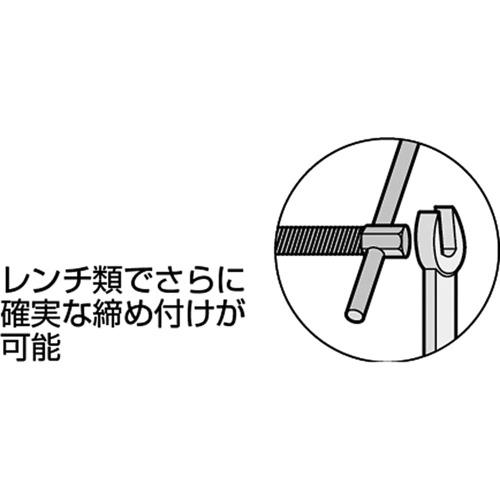

[Features] ● If the plate comes off, it can be attached. ●The shaft head is a hexagon that can be tightened with a wrench. ●While quality such as strength is the same as the conventional product (B type), the price has been reduced by changing the surface treatment. ●Precision forging provides sufficient forging strength for long-term use. ●The high-precision square screws have little backlash and can be opened and closed smoothly.

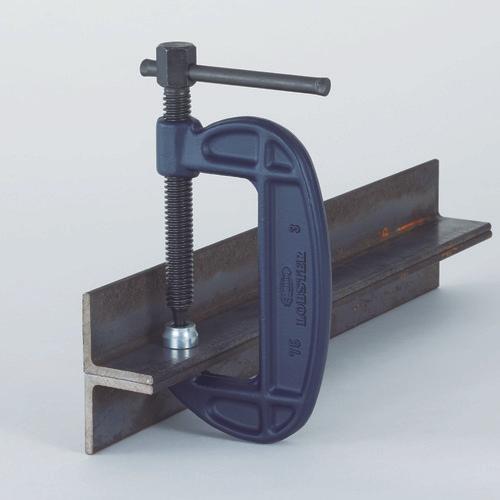

[Use] ● For welding work.

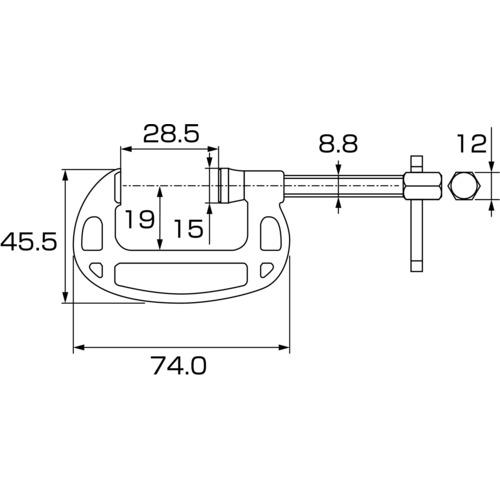

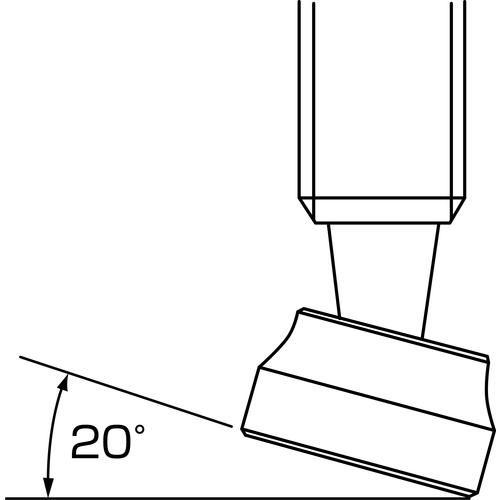

[Specifications] ● Maximum mouth opening (mm): 28.5 ● Jaw depth (mm): 19 ● Male screw hexagon width across flats (mm): 12 ● Tightening force (kN): - ● Plate angle (°): 20 ● Opposite side of screw hexagon (mm): 12 Guaranteed strength (kN): 9.4
[Specification 2] ● Dark blue baking paint ● BAHCO type
