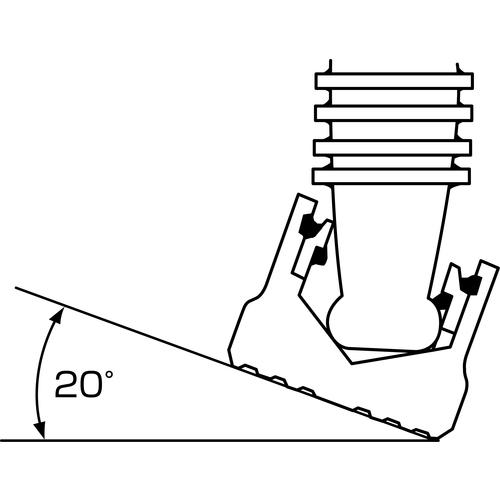

[Features]● The swing angle of the plate part is 20° and can be replaced. (Excluding B25 and B38) ●The shaft head is hexagonal and can be tightened with a wrench. ● Cationic electrodeposition coating. ●Precision forging provides sufficient forging strength for long-term use. ● Thorough heat treatment fully demonstrates the toughness that is a characteristic of special steel. ●The high-precision square screws have little backlash and can be opened and closed smoothly.
[Use] ● For welding work.

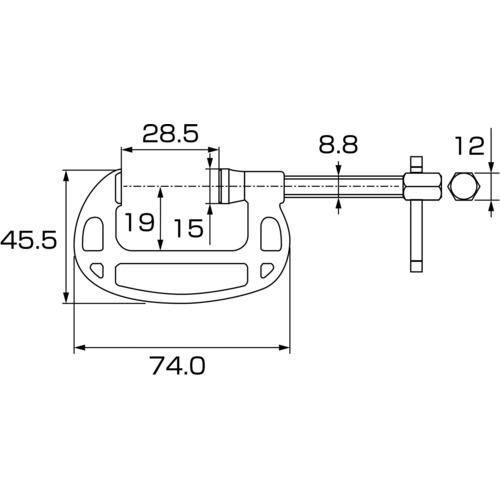

[Specifications] ● Maximum mouth opening (mm): 28.5 ● Jaw depth (mm): 19 ● Male screw hexagon width across flats (mm): 12 ● Tightening force (kN): - ● Plate angle (°): 20 ● Opposite side of screw hexagon (mm): 12 Guaranteed strength (kN): 9.4
