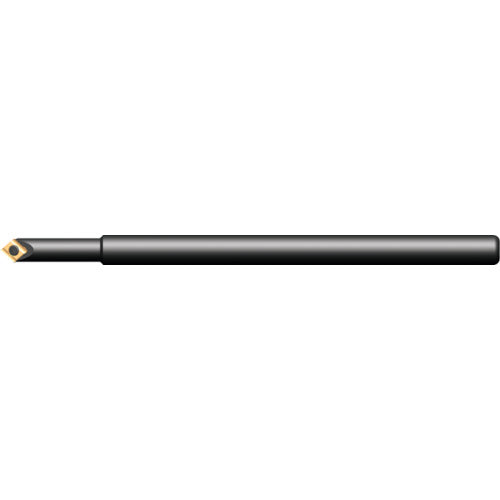

Fujimoto FUJIGEN Fir Long Type

[Features]● Throw-away cutter capable of center pitting and chamfering. ●Since the tip is exchangeable, there is no need to correct the tool length when changing the tool. ●The blade diameter, angle, and tool length can be selected according to the application.

[Applications] ● For center hole/momitsuke processing, countersunk chamfering, and edge chamfering.

[Specifications] - Shank diameter (mm): 10 - Number of flutes: 1 - Tip angle (°): 90 - Overall length (mm): 165 - Dedicated tip: C22GUX

[Specification 2] Processing blade diameter (mm): 0.6 to 9.00

[Material/Finish] Steel

[Set Contents/Accessories] ●Clamp screw, wrench (tip sold separately)

【Note】
-
