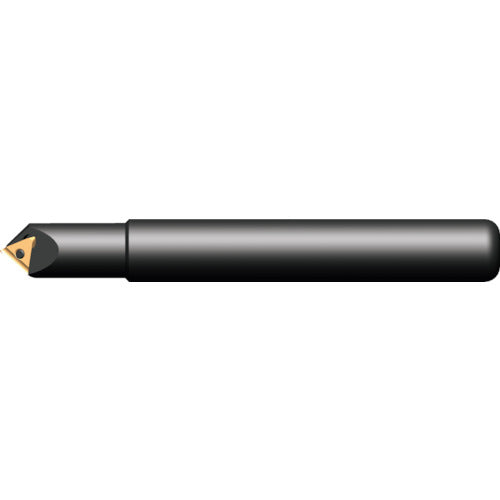

FUJIGEN Dekamomi 45° Shank φ25 Long Type

[Features]● Throw-away cutter capable of center pitting and chamfering. ●Since the tip is exchangeable, there is no need to correct the tool length when changing the tool. ●The blade diameter, angle, and tool length can be selected according to the application.

[Applications] ● For center hole/momitsuke processing, countersunk chamfering, and edge chamfering.

[Specifications] - Shank diameter (mm): 25 - Number of flutes: 1 - Tip angle (°): 90 - Overall length (mm): 200 - Chamfering diameter (mm): 3.0 - 22.5 - Dedicated tip: T32GUX

[Specification 2] Processing blade diameter (mm): 3.0 to 22.50

[Material/Finish] Steel

[Set Contents/Accessories] Lock pin, wrench (chip sold separately)

【Note】
-
