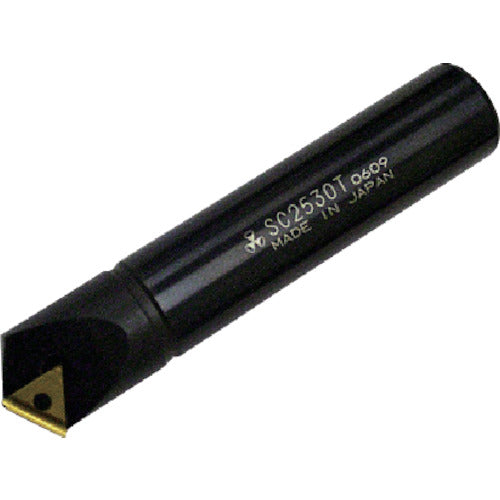

FUJIGEN Dekamomi 30° Shank φ25

[Features]● Throw-away cutter capable of center pitting and chamfering. ●Since the tip is exchangeable, there is no need to correct the tool length when changing the tool. ●The blade diameter, angle, and tool length can be selected according to the application.

[Applications] ● For center hole/momitsuke processing, countersunk chamfering, and edge chamfering.

[Specifications] - Shank diameter (mm): 25 - Number of flutes: 1 - Tip angle (°): 120 - Total length (mm): 130 - Chamfering diameter (mm): 3.0 - 26.6 - Dedicated tip: T32GUX

[Specification 2] Processing blade diameter (mm): 3.0 to 26.60

[Material/Finish] Steel

[Set Contents/Accessories] Lock pin, wrench (chip sold separately)
