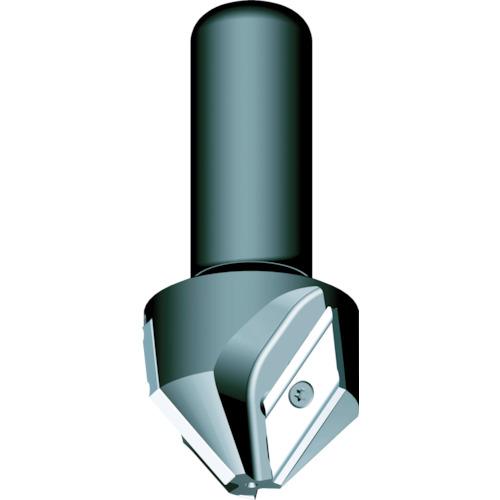

FUJIGEN Gentlemen 30°

[Features] ● The angle can be selected according to the application. ●High-rigidity chamfering cutter with 3 throw-away blades. ● Chamfering with a flute length of 30 mm is possible. ●The unique chip breaker makes it easy to process difficult-to-cut materials such as SUS304. ● Chamfering up to 30 mm wide is possible (3 blades).

[Use] ● Chamfering.

[Specifications] - Shank diameter (mm): 32 - Number of flutes: 3 - Tip angle (°): 30 - Total length (mm): 135 - Dedicated tip: X63GUR type

[Specification 2]
-

[Material/Finish] Steel

[Set Contents/Accessories] -Clamp screw, wrench (tip sold separately)

【Note】
-
