[Features] ● Insert for NC spot drill holder. ●Momitsuke and chamfering are integrated into one process. ●The tip angle of 145° prevents drill shoulder chipping.
[Applications] ●Filling of pilot holes for taps on CNC lathes, CNC compound lathes, and machining centers. ●Filling only at 145°. ●Chamfering and V-grooving.
[Specifications] ● Coating: TiAIN ● Tip angle (°): 145 + 90 ● Compatible holder: 99616-10 ● Length (mm): 8 ● Number of corners: 2 ● Thickness (mm): 2.38 ● Nose R (mm) ): 0.8 - Pilot hole dimensions: M4 x 0.7 - Carbide material: K20F - Maximum processing diameter (mm): 8

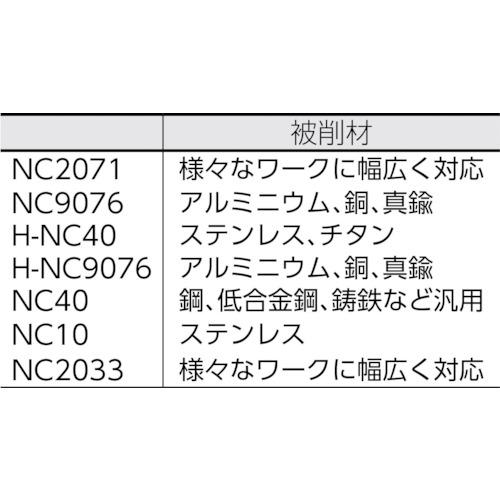

[Specification 2] ● Insert for 145° kneading + 90° chamfering ● NC2033: Compatible with various workpieces
