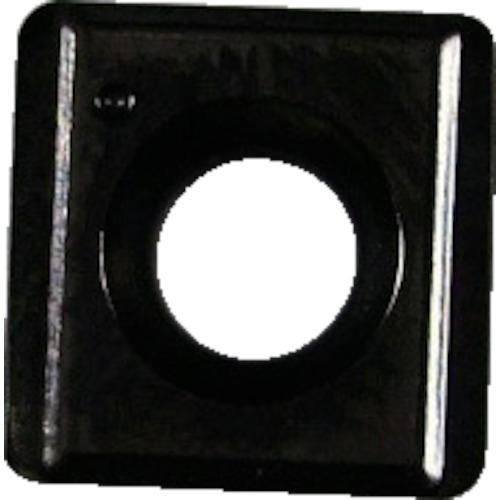

[Features] ● Insert for NC spot drill holder. ●Long life due to the special insert design. ●Ingenious insert design and coating enable Kosoku operation.
[Use] ● For chamfering, spotting, V-grooving, and engraving on CNC lathes, CNC compound lathes, and machining centers.
[Specifications] ● Coating: DLC ● Point angle (°): 90 ● Compatible holder: 99616-10 ● Length (mm): 8 ● Number of corners: 2 ● Thickness (mm): 2.38 ● Nose R (mm): 0.8 · Pilot hole dimensions: - · Carbide material: K20F · Maximum processing diameter (mm): 10

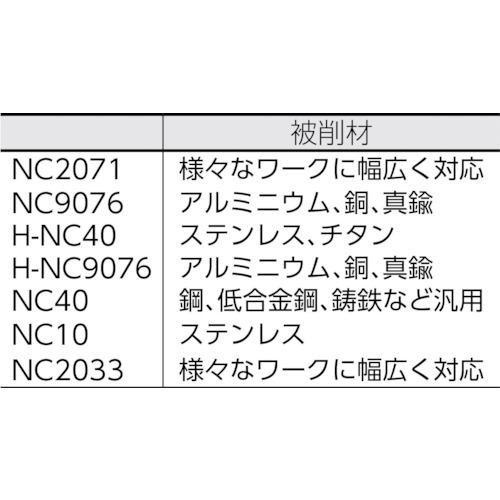

[Specification 2] ● Insert for 90° ● NC2071: Compatible with a wide variety of workpieces ● NC9076: Aluminum, copper, brass, etc. ● H-NC40: Stainless steel, titanium, etc. ● H-NC9076: Aluminum, copper, brass, etc. ● NC40: General-purpose type for steel, low-alloy steel, cast iron, etc. NC-10: Stainless steel, etc.
